ABB 3BHE024415R0101 Gate Unit – Fiber-Optic Trigger Processor for IGCT Drives

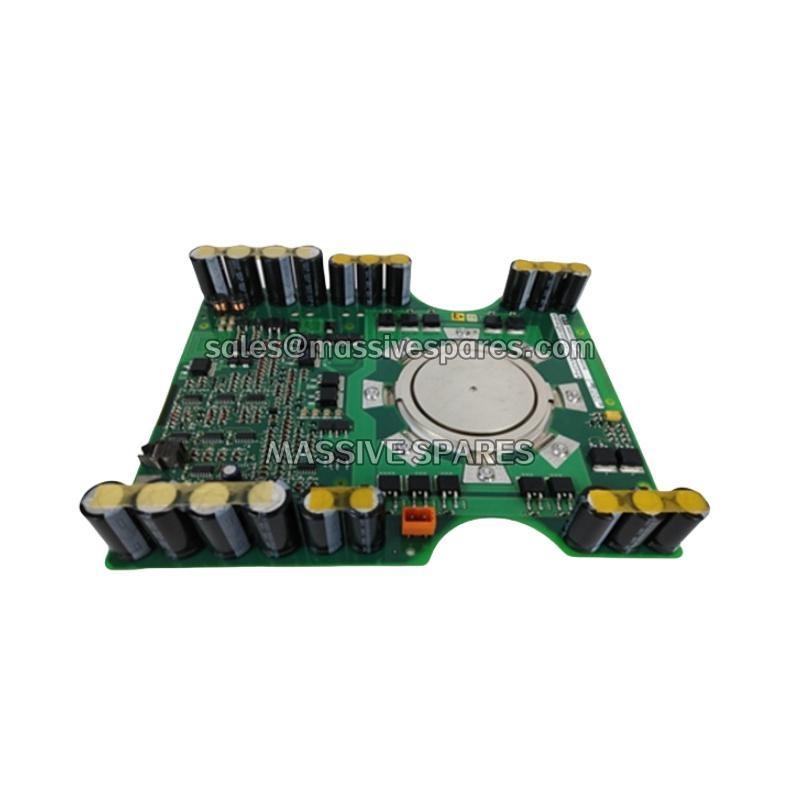

The ABB 5SGX1060H0003 with part number 3BHE024415R0101 represents a critical power semiconductor assembly within ABB’s medium voltage drive portfolio, specifically engineered for ACS6000 and ACS5000 variable frequency drive systems. The ABB 5SGX1060H0003 component designation identifies a HiPak asymmetrical Integrated Gate Commutated Thyristor (IGCT) rated at 4500V blocking voltage and 1060A average on-state current under forced water cooling. The accompanying 3BHE024415R0101 ordering number corresponds to the dedicated gate unit processor board—designated GVC714A101 in ABB’s internal documentation—that orchestrates the IGCT’s switching behavior through fiber-optic command inputs and hard-driven gate pulse outputs.

In the ACS6000 drive architecture, the ABB 5SGX1060H0003 functions as the power switching element responsible for converting DC bus voltage into controlled AC output for medium voltage motors ranging from 3 MW to 27 MW. The 3BHE024415R0101 gate unit operates as the intelligent interface between the drive’s main control system and the IGCT semiconductor, translating low-power control signals into precisely timed, high-current gate pulses capable of achieving sub-3-microsecond turn-off transitions. This snubberless commutation capability distinguishes ABB’s IGCT technology from conventional GTO thyristors, eliminating complex RCD snubber networks and substantially reducing drive cabinet footprint and switching losses.

The ABB 5SGX1060H0003 with 3BHE024415R0101 gate unit finds deployment in demanding industrial drive applications where high power density, rapid fault clearing, and long operational life are paramount. Field experience indicates that the 3BHE024415R0101 gate unit typically reaches end-of-life before the 5SGX1060H0003 IGCT itself, due to the presence of electrolytic capacitors and optocouplers on the processor board that age faster than the press-pack semiconductor element.
