Description
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

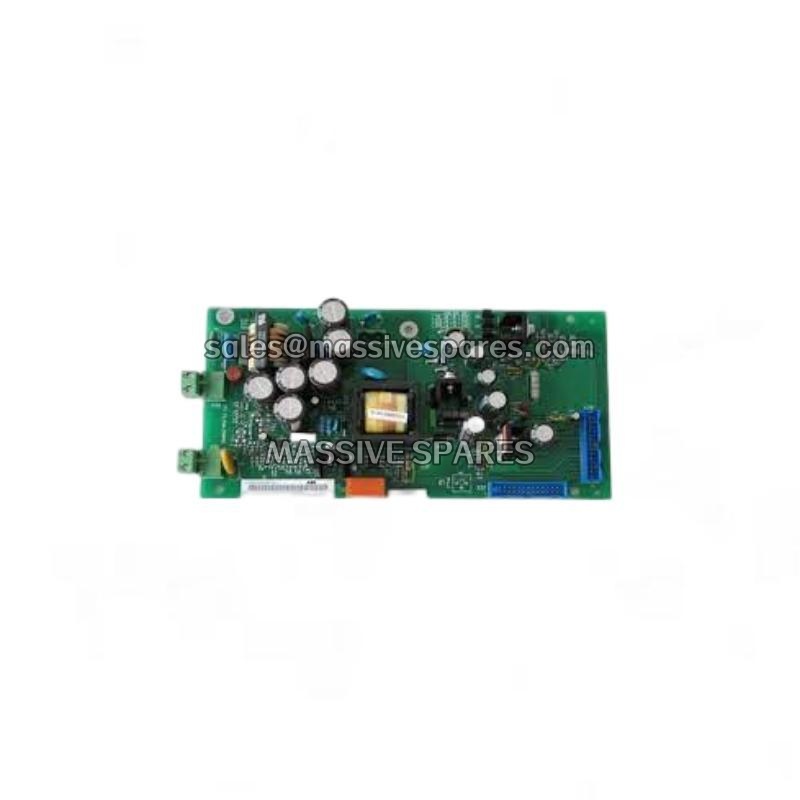

| Product Model | 3BHE027867R0101 GDD852 A101 |
| Manufacturer | ABB |
| Product Type | Gate Drive Circuit Board / IGCT Driver Module |
| Series | GDD852 / ACS6000 Drive System |
| Supported Power Modules | IGCT (5SHX, 5SXE series), IGBT modules |
| Gate Output Voltage | 15 V (turn-on) / -15 V (turn-off) |
| Peak Gate Drive Current | Up to 10 A |
| Control Signal Interface | Fiber optic (PWM command + status feedback) |
| Fiber Optic Channels | 2 (command + status) |
| Supply Voltage | 24 V DC (±10%) |
| Isolation Voltage | ≥ 15 kV (optical isolation) |
| Protection Functions | Desaturation detection, UVLO, Miller clamp, VCE monitoring |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Board Dimensions (approx.) | 160 mm × 100 mm × 25 mm |
| Weight (approx.) | 0.28 kg |
| Certification Standards | CE, UL, CSA, ISO 9001 |
Main Features and Advantages
High-Speed Gate Driving with Precise Timing: The ABB 3BHE027867R0101 GDD852 A101 delivers fast and accurate gate pulses to connected power semiconductors, ensuring minimal switching losses and optimal device performance. The driver’s advanced output stage provides peak gate currents of up to 10A, enabling rapid turn-on and turn-off transitions that are critical for reducing switching losses in high-frequency applications. The ABB 3BHE027867R0101 GDD852 A101 incorporates dynamic gate control techniques that optimize switching performance under varying load conditions, effectively balancing switching speed against electromagnetic interference to enhance overall drive system efficiency and extend power module lifespan.
Comprehensive Protection and Fault Diagnostics: The ABB 3BHE027867R0101 GDD852 A101 integrates a complete set of protection functions that safeguard both the driver and the power semiconductors. Desaturation detection monitors the on-state voltage of the IGCT during conduction, providing rapid response to short-circuit conditions that could otherwise destroy the power device. Undervoltage lockout prevents switching of the IGCT when gate drive supply is insufficient, avoiding inefficient or destructive switching. Active Miller clamping prevents unintended IGCT turn-on caused by high dv/dt transients, a common challenge in medium-voltage converters. The ABB 3BHE027867R0101 GDD852 A101 transmits fault status back to the main controller through the fiber optic link, enabling precise fault identification and coordinated system response that minimizes downtime.
Optical Isolation with Superior Noise Immunity: The ABB 3BHE027867R0101 GDD852 A101 uses fiber-optic communication for all control and status signals, providing complete electrical isolation rated at over 15kV between low-voltage control electronics and the high-voltage power stage. This eliminates ground loops and provides immunity to severe electromagnetic interference generated by fast-switching power semiconductors. The fiber optic link ensures signal integrity over extended distances, making the ABB 3BHE027867R0101 GDD852 A101 suitable for the electrically challenging environments found in steel mills, mining operations, and high-power drive applications.
Flexible Integration and Modular Design: The ABB 3BHE027867R0101 GDD852 A101 is designed for flexible integration into the power stacks of medium-voltage drives, mounting directly onto or near the IGCT module on a panel. Its modular design simplifies replacement and maintenance, allowing trained personnel to quickly exchange the ABB 3BHE027867R0101 GDD852 A101 with minimal system downtime. The board includes diagnostic LEDs for quick visual status checks, simplifying field troubleshooting without additional test equipment.
