ABB 5SHY3545L0014 Press-Pack IGCT Power Module – Snubberless Turn-Off Capability

Brand ABB

Model ABB 5SHY3545L0014

The ABB 5SHY3545L0014 (associated part numbers: 3BHE019719R0101, GVC736BE101, 3BHE023784) is a high-power asymmetric Integrated Gate-Commutated Thyristor (IGCT) module from ABB’s 5SHY series, designed as the core switching device for medium-voltage drive and converter systems. Operating at a 4.5 kV voltage class with 3.5 kA current capability, the ABB 5SHY3545L0014 performs the critical AC-DC-AC power conversion function in multi-megawatt drive applications, enabling precise control of large industrial motors in the 2–20 MW range. This press-pack semiconductor represents ABB’s advanced IGCT technology, combining the high blocking voltage and low conduction losses of GTO thyristors with the fast switching speed of IGBTs.

What fundamentally distinguishes the ABB 5SHY3545L0014 from conventional power semiconductor packages is its wire-bond-free press-pack construction. The metal-to-metal clamped contact design provides uniform current sharing, low thermal resistance, and inherent short-circuit ruggedness, eliminating the wire-bond fatigue that degrades conventional modules under thermal cycling. The asymmetric (reverse-conducting) design integrates an anti-parallel freewheeling diode directly within the module, eliminating the need for external snubber circuits and simplifying overall system architecture. This makes the ABB 5SHY3545L0014 exceptionally reliable in cyclic-duty applications such as traction, marine propulsion, and renewable energy conversion.

The ABB 5SHY3545L0014 is typically deployed as a matched pair with the 3BHE019719R0101 gate driver board (also designated GVC736BE101), which supplies the high-current gate pulses required for IGCT turn-off and provides overcurrent, over-temperature, and fault protection functions. Together, these components form the power switching core of ABB ACS5000 and ACS6000 medium-voltage drives, STATCOM and SVC systems for grid support, and high-power converter systems across oil and gas, metallurgy, and power generation industries.

Request Price

Description

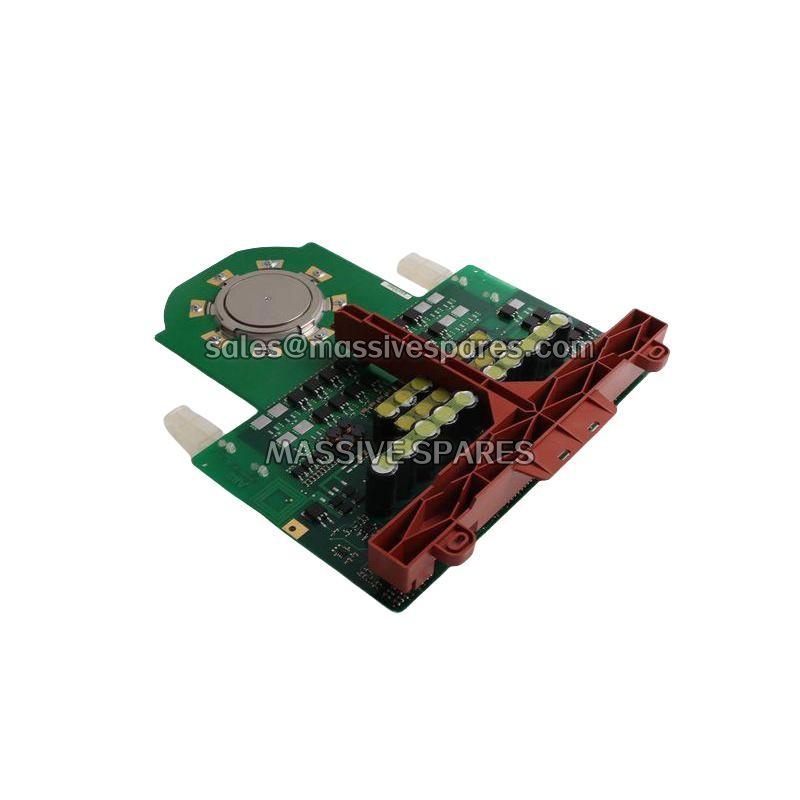

: 5shy3545l0014_3bhe019719r0101_abb_frequency_converter

Technical Specifications

Parameter Name	Parameter Value
Product Model	5SHY3545L0014 (with 3BHE019719R0101 / GVC736BE101 gate driver)
Manufacturer	ABB
Product Type	Asymmetric Integrated Gate-Commutated Thyristor (IGCT) Power Module
Device Structure	Press-pack, reverse-conducting (anti-parallel diode integrated)
Repetitive Peak Off-State Voltage (VDRM)	4500 V (4.5 kV class)
Average On-State Current (IT(AV))	3500 A (3.5 kA class)
Non-Repetitive Peak On-State Current (ITSM)	120 kA (8.3 ms pulse)
On-State Voltage Drop (VT)	≤ 1.85 V @ 4500 A
Switching Frequency	500 Hz – 2 kHz
Gate Drive Interface	Fiber-optic Rx/Tx links; isolated gate unit supply 24 VDC nominal
Operating Junction Temperature	-40°C to +125°C
Cooling Method	Water-cooled (deionized water, conductivity < 0.5 µS/cm); double-sided cooling
Installation	Hydraulic press-pack clamping, contact force 25–30 kN; low-inductance busbar connections
Weight	Approximately 2.6 – 3.5 kg (module with driver board)

Main Features and Advantages

Advanced IGCT Technology with Snubberless Turn-Off: The ABB 5SHY3545L0014 represents the evolution of high-power thyristor technology, integrating an optimized gate drive path directly into the device structure to achieve fast turn-off times and low switching losses without external snubber circuits. This asymmetric design enables reliable switching while simplifying system layout, reducing component count, and improving overall converter efficiency in medium-voltage drive applications.

Press-Pack Construction for Exceptional Reliability: The ABB 5SHY3545L0014 employs a wire-bond-free press-pack architecture in which metal-to-metal clamped contacts provide uniform current distribution and low thermal resistance. This construction eliminates the fragile wire bonds that fatigue under repeated thermal cycling, making the ABB 5SHY3545L0014 inherently rugged for cyclic-duty applications in traction, marine propulsion, and industrial drives where conventional modules would degrade rapidly.

Integrated Freewheeling Diode: The reverse-conducting design of the ABB 5SHY3545L0014 incorporates an anti-parallel diode within the module package, eliminating the need for external freewheeling components in inverter circuits. This integration simplifies circuit topology, reduces parasitic inductance, and contributes to more compact equipment design.

Matched Gate Driver Unit for Optimal Performance: The 3BHE019719R0101 (GVC736BE101) gate driver board is factory-matched to the ABB 5SHY3545L0014 IGCT module, delivering the high-current gate pulses required for reliable turn-off and providing comprehensive fault protection including overcurrent, over-temperature, and gate fault detection. Fiber-optic signal isolation ensures strong immunity to electromagnetic interference in high-power switching environments.
