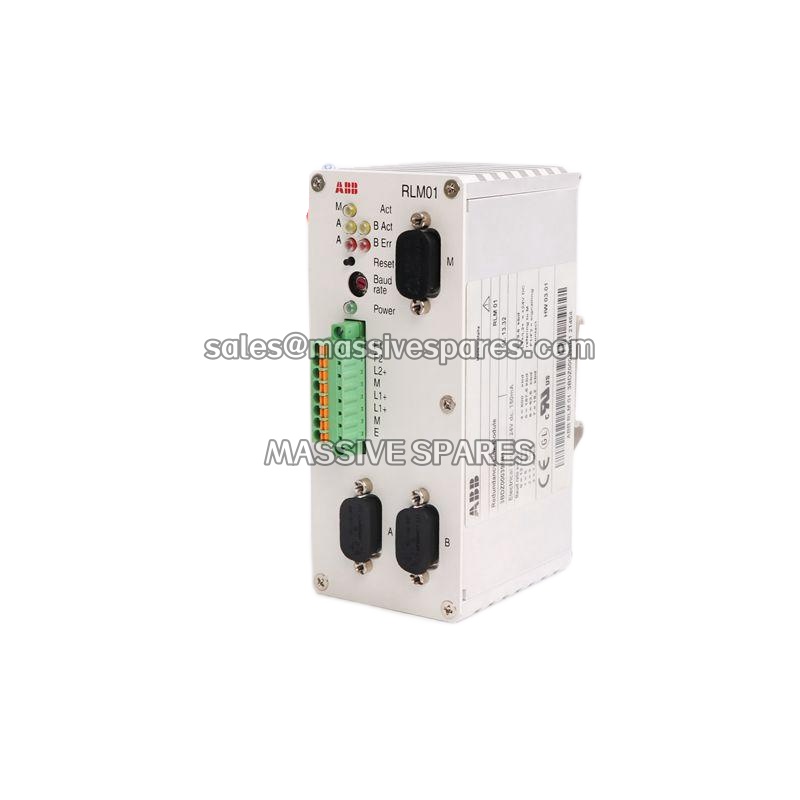

ABB RLM01 3-Port PROFIBUS Redundancy Module with Potential-Free Alarm Contact

Description

Application Scenarios

Consider a 500 MW combined-cycle power plant where the gas-turbine auxiliary DCS talks PROFIBUS DP to forty-odd devices: combustion-air dampers, fuel skid valves, vibration transmitters, analyzer shelters and a handful of drives. The original design used a single bus. Then a contractor cuts the trunk during an unrelated civil works package. The master loses the bus, the DCS declares a communication fault, and the turbine trips on a loss-of-control signal that had nothing to do with the turbine itself. The financial consequence is measured in hours and six figures; the reputational one lasts longer.

Retrofitting the ABB RLM01​ at the head of each critical bus segment changes the math. The master now sees lines A and B. The module forwards the first valid frame it receives and continuously checks activity and error status on all three ports. When the damaged A-line waveform collapses, the control logic selects B—same telegram, same slave, no retransmission requested by the application, no alarm in the control room. The cut cable is found during the next planned walkdown, not during a forced outage. And because the RLM01​ is transparent to the PROFIBUS configuration, none of the forty slave addresses, GSD files or control logic had to be touched.

The same device pays for itself on a different kind of asset: a chemical tank farm where the field instruments are decades old, single-interface, and no longer manufactured in a redundant-coupler version. Replacing them would be a multi-year CAPEX and I/O check. Installing the RLM01​ in front of each segment gives the existing transmitters and meters an A/B path for the price of a module and a second run of shielded cable. In both cases the value is not speed and not features—it is avoided interruption, the most expensive variable in a continuous process.
