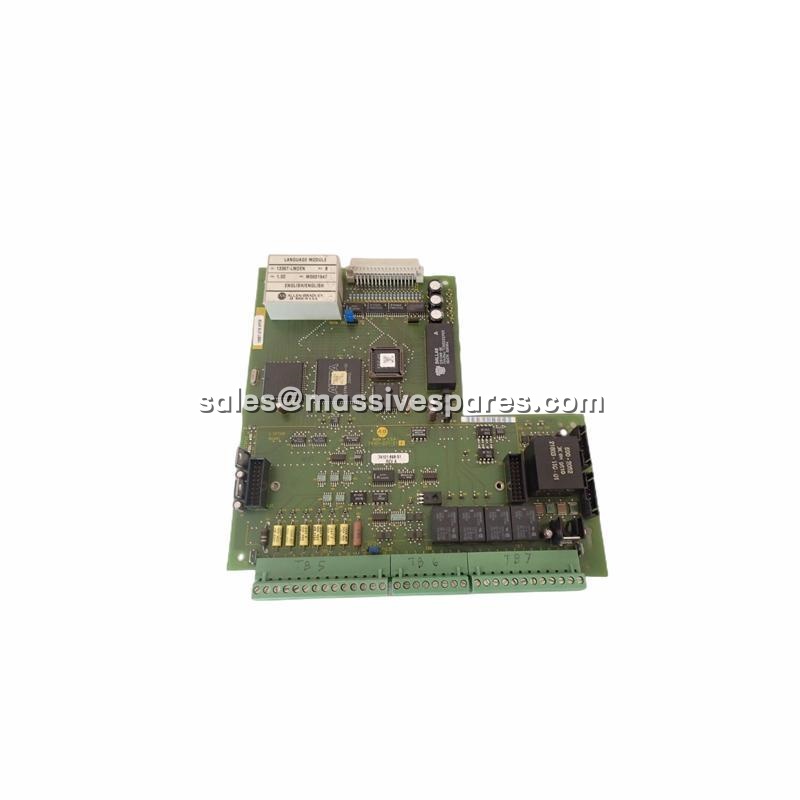

Allen-Bradley 1336T-GTB-SP1A – PLC Communication Board for 1336 FORCE Drive Customization

Description

Application Scenarios

In a legacy automotive manufacturing plant, engineers faced a critical modernization challenge: their aging 1336 FORCE drive systems required direct integration with existing PLC-5 control architecture without undertaking a complete drive replacement program. The AB 1336T-GTB-SP1A communication board provided the ideal solution, enabling plant technicians to establish reliable data exchange between the drive and PLC-5/40L controllers through the SCANport interface. This integration allowed production line supervisors to monitor drive status, adjust operating parameters, and coordinate multi-axis motion sequences directly from the existing control system—eliminating the need for separate drive programming terminals and reducing commissioning time by approximately 35%. In a steel processing facility, the AB 1336T-GTB-SP1A was deployed to bridge 1336 FORCE drives with the plant’s centralized PLC-5/25 control network, allowing real-time speed and torque commands to be transmitted without additional gateway hardware. The board’s ability to customize drive operation proved essential when the facility needed to implement application-specific acceleration profiles that were not supported by standard drive firmware. Each instance of the AB 1336T-GTB-SP1A in this installation contributed directly to reduced wiring complexity, improved diagnostic visibility, and extended the operational life of the existing drive infrastructure .
