Description
Application Scenarios
In a distributed control architecture spanning multiple production areas, CompactLogix 5380 controllers communicate with remote I/O stations across an EtherNet/IP network. Each 5069-AENTR adapter requires reliable power connections to function as the communication gateway for its connected I/O modules. A loose or intermittent connection at the adapter’s power terminals can cascade into communication faults affecting an entire production zone.
The Allen-Bradley 5069-RTB5-SCREW addresses this vulnerability directly. By providing a screw-type terminal interface with a specified torque range of 0.5 to 0.6 N·m (4.4 to 5.3 lb·in), the 5069-RTB5-SCREW ensures that SA power wires remain firmly secured even in vibration-prone industrial environments . When maintenance personnel need to replace an adapter or reconfigure wiring, the removable design of the 5069-RTB5-SCREW allows the terminal block to be detached without disturbing the field wiring, significantly reducing commissioning time and minimizing the risk of wiring errors during service operations.
In another scenario, a system integrator commissions a Compact 5000 I/O system in a hazardous location where safety and reliability are paramount. The 5069-RTB5-SCREW provides the secure connection needed to meet installation standards, with clear wiring diagrams and torque specifications that ensure compliance with Rockwell Automation’s installation instructions .
Parameters
| Main Parameters | Value/Description |
|---|---|

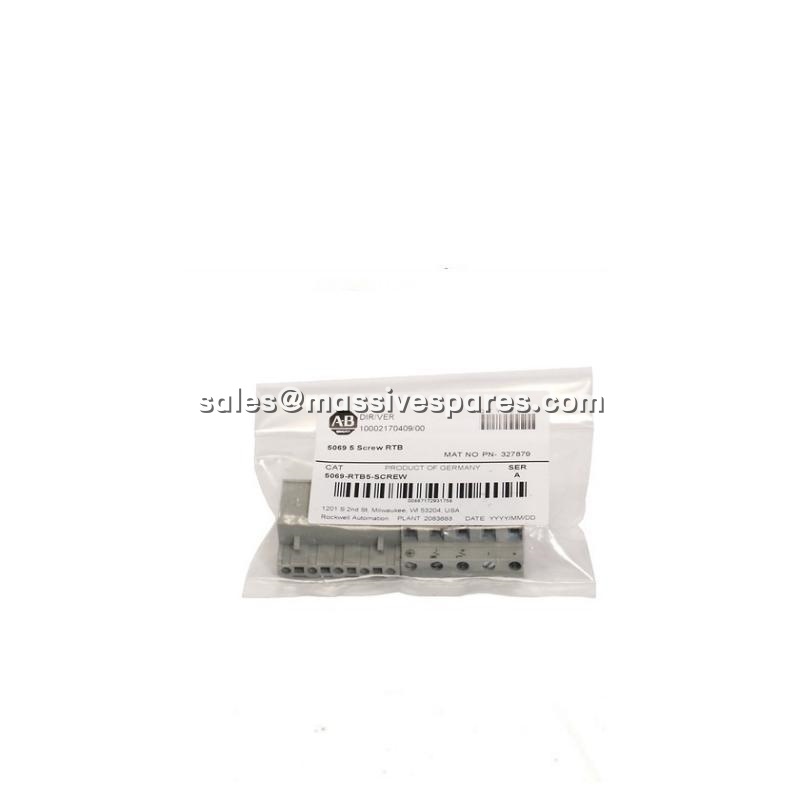

| Product Model | 5069-RTB5-SCREW |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Category | Removable Terminal Block (RTB) / PLC Accessory |
| Pin Count | 5 pins |
| Connection Type | Screw terminal |
| Compatible Adapter | 5069-AENTR EtherNet/IP adapter only |
| Wire Strip Length | 10 mm (0.39 in.) |
| Torque Specification | 0.5–0.6 N·m (4.4–5.3 lb·in) |
| Wire Gauge Range | 24–14 AWG (0.2–2.5 mm²) |
| Operating Temperature | 0–60 °C (32–140 °F) |
| Compatibility | CompactLogix 5380 controller, Compact 5000 I/O EtherNet/IP |
| Kit Contents | 5-pin screw-type terminal block |
Technical Principles and Innovative Values
Torque-Controlled Screw Termination: The 5069-RTB5-SCREW is engineered around a precise torque specification that ensures optimal wire clamping without damaging conductors or terminal hardware. The 0.5–0.6 N·m range provides a measurable standard for installation quality, eliminating the guesswork that often accompanies screw-terminal wiring in industrial settings .
Removable Design for Serviceability: Unlike fixed terminal connections, the 5069- can be detached from the 5069-AENTR adapter while field wiring remains intact. This design philosophy reduces mean time to repair (MTTR) by allowing module replacement without rewiring, a critical advantage in continuous-process industries where downtime carries significant cost implications.
Purpose-Built for Compact 5000 Platform: The 5069- is not a generic terminal block—it is specifically designed for the 5069-AENTR adapter’s SA power connections. This focused compatibility ensures proper fit, correct pin alignment, and adherence to Rockwell Automation’s electrical safety requirements. The terminal block carries UL certification as a component recognized for Canada .
Clear Wiring Interface: With 5 clearly designated terminals, the 5069- simplifies the wiring of SA power connections. The terminal arrangement supports both DC and AC power configurations, allowing the same RTB to serve different power schemes depending on the application requirements .
