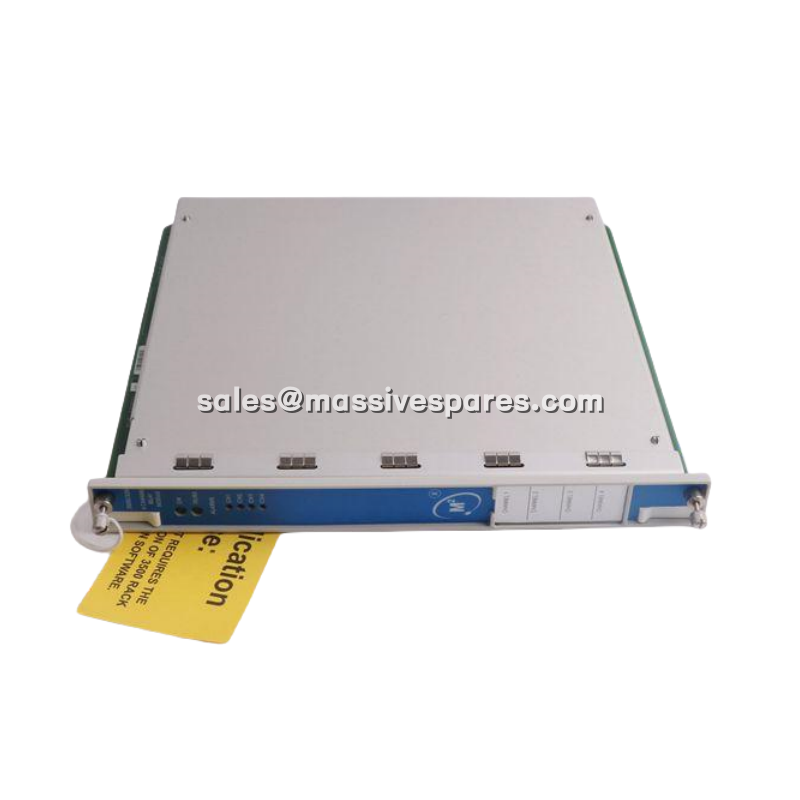

Bently Nevada 3500/61E Temperature Monitor – 6-Channel RTD & TC Input Module for 3500 System

Brand ABB

Model Bently 3500/61E

Product Overview

The Bently Nevada 3500/61E is a high-performance six-channel temperature monitoring module designed as a core component of the Bently Nevada 3500 Machinery Protection System. As the standard six-channel temperature monitor for the 3500 ENCORE rack, the Bently Nevada 3500/61E provides continuous, precise monitoring of process temperatures and equipment metal temperatures across a wide range of industrial applications. This module accepts input signals from both Resistance Temperature Detectors (RTDs) and Thermocouples (TCs), conditioning these signals for comparison against user-programmable alarm setpoints to protect critical rotating machinery from thermal damage.

The Bently Nevada 3500/61E distinguishes itself from the 3500/60 model through its integrated per-channel recorder outputs, delivering 4-20 mA proportional signals for each of its six monitoring channels. This capability enables seamless integration with distributed control systems (DCS), programmable logic controllers (PLC), and data historians, facilitating comprehensive temperature logging and trend analysis. Each channel is independently configurable via the 3500 Rack Configuration Software, allowing mixed RTD and TC inputs within a single module to accommodate diverse sensor types across different measurement points on the same machine train.

The Bently Nevada 3500/61E is engineered with a dual-application architecture, functioning effectively in both new 3500 ENCORE system installations and legacy 3300 system rack upgrades. When deployed in upgrade scenarios, the Bently Nevada 3500/61E pairs with existing 3300/30 and 3300/35 six-channel monitor I/O modules and field wiring, preserving the original installation infrastructure while delivering modern monitoring capabilities. This versatility makes it an efficient solution for plants seeking to modernize their machinery protection systems without extensive rewiring or sensor replacement programs.

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	Bently Nevada 3500/61E
Manufacturer	Bently Nevada
Product Type	Six-Channel Temperature Monitor Module
Input Signal	1 to 6 RTD or TC transducer signals
Input Impedance	Greater than 3 MΩ per lead input
RTD Types Supported	100Ω Platinum (α=0.00385/0.00392), 120Ω Nickel, 10Ω Copper
TC Types Supported	Type E, J, K, T
Recorder Output	4-20 mA per channel (individual)
Resolution	1°C or 1°F
Accuracy	±3°C at 25°C (Platinum RTD)
Power Consumption	TC Option: 6.3W nominal; RTD Option: 5.6W nominal
Isolation	TC Option: 500 Vdc channel-to-channel
Alarm Setpoints	User-programmable via 3500 Rack Configuration Software
Operating Temperature	-20°C to +65°C
Dimensions (H×W×D)	241.3mm × 24.4mm × 241.9mm (approx.)
Weight	0.91 kg (approx.)

Main Features and Advantages

Six Independent Monitoring Channels: The Bently Nevada 3500/61E simultaneously monitors up to six distinct temperature measurement points, delivering high channel density that reduces the number of modules required per rack and lowers overall system cost. Each channel operates independently with dedicated signal conditioning, ensuring that a fault on one channel does not compromise monitoring on the others.

Dual Sensor Compatibility with Mixed Configuration: The Bently Nevada 3500/61E supports both RTD and thermocouple inputs, with the unique ability to configure mixed sensor types across its six channels. This flexibility accommodates applications where different measurement points require different sensor technologies, such as combining platinum RTDs for high-accuracy bearing temperature monitoring with Type K thermocouples for exhaust gas temperature measurement.

Per-Channel Recorder Outputs: Unlike the 3500/60, the Bently Nevada 3500/61E provides individual 4-20 mA recorder outputs for each of its six channels, enabling direct transmission of proportional temperature data to external recording devices, DCS, or PLC systems. This feature eliminates the need for additional signal conditioning or multiplexing equipment, simplifying system architecture and reducing installation complexity.

3300 System Upgrade Compatibility: The Bently Nevada 3500/61E is specifically designed to work with legacy 3300/30 and 3300/35 monitor I/O modules, allowing plants to upgrade from 3300 to 3500 ENCORE racks while reusing existing field wiring and I/O infrastructure. This backward compatibility significantly reduces the cost and downtime associated with system modernization projects.

Integrated Protection and Diagnostics: The Bently Nevada 3500/61E compares conditioned temperature signals against user-programmable Alert and Danger setpoints, triggering alarms when temperatures exceed safe operating limits. Front-panel LEDs for OK, TX/RX, and Bypass status provide immediate local indication of module health and alarm conditions, supporting rapid troubleshooting by maintenance personnel.
