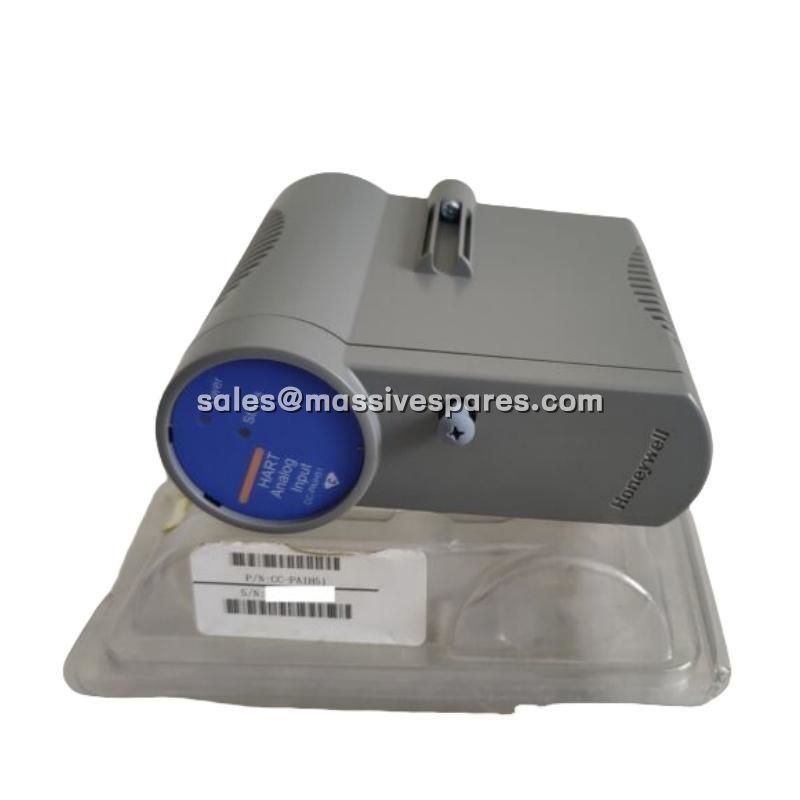

Description
Application Scenarios
In a natural gas processing plant, multiple Honeywell 51410069-275 modules monitor pressure, temperature, and flow signals from critical separation units. When a transmitter begins to drift or a wire connection degrades, operators need to know before the measurement error affects product quality or safety margins. Traditional analog input modules provide only the raw 4-20mA value—no insight into transmitter health.
The Honeywell 51410069-275 addresses this limitation directly. Its integrated HART communication continuously polls smart transmitters for diagnostic status, calibration data, and secondary variables, all while maintaining the primary analog measurement with 16-bit precision . When a pressure transmitter on a critical separator shows early signs of sensor degradation, the module surfaces this diagnostic through the control system, allowing maintenance to schedule replacement before a process upset occurs. The 51410069-275 transforms analog input from a passive measurement function into an active asset health monitoring tool .
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | 51410069-275 (CC-PAIH51) |
| Manufacturer | Honeywell |
| Product Category | High-Level Analog Input Module with HART |
| Input Channels | 16 single-ended channels (no differential/voltage inputs) |
| Input Type | Current only – 2-wire or self-powered transmitters |
| Input Range | 4-20 mA (through 200Ω) |
| A/D Resolution | 16 bits |
| Accuracy | ±0.075% of full-scale (23.5°C); ±0.15% (0-60°C) |
| Input Scan Rate | 50 ms |
| HART Support | 16 HART communication units |
| Isolation | Channel-to-channel isolation |
| Common Mode Rejection | 70 dB (dc to 60 Hz, 500Ω source imbalance) |
| Power Supply | 24 VDC via IOTA |
| Associated Terminal Boards | CC-TAIX01 (non-redundant), CC-TAIX11 (redundant) |
Key parameter notes:
- 16 Single-Ended Channels: Optimized for current-loop transmitters; does not support differential voltage inputs or open-wire detection .
- 16-Bit A/D Resolution: Delivers high-precision measurement for critical process loops.
- 50 ms Scan Rate: Fast enough for most process control loops while supporting HART multiplexing.
- HART Support (16 units): Enables full device management; note that 1-second dynamic/device scan rates are not supported .
- No Field Calibration Required: The CC-PAIH51 design eliminates the need for periodic field calibration .
Technical Principles and Innovative Values
- Innovation Point 1: Simultaneous Analog and Digital Measurement. The Honeywell 51410069-275 processes the 4-20mA analog signal and HART digital communication concurrently without compromising either function. The analog path provides the primary process variable with 16-bit precision, while the HART channel operates independently to retrieve device status, secondary variables, and configuration data from smart transmitters . This dual-path architecture eliminates the trade-off between measurement accuracy and diagnostic capability that affects some HART multiplexer solutions.
- Innovation Point 2: Non-Incendive Field Power Supply. The 51410069-275 supplies non-incendive field power directly to connected transmitters, eliminating the need for external user-supplied power or fusing for each loop . This simplifies cabinet wiring, reduces component count, and improves reliability by removing potential failure points in the power path.
- Innovation Point 3: Comprehensive Self-Diagnostics. The module incorporates extensive built-in diagnostics that continuously monitor signal integrity, module health, and HART communication status . When paired with the appropriate terminal board, these diagnostics can identify issues before they escalate into measurement failures, supporting predictive maintenance strategies that reduce mean time to repair.
- Innovation Point 4: Optimized for Current-Only Transmitters. By focusing exclusively on 4-20mA current inputs, the 51410069-275 avoids the complexity and potential error sources associated with multi-signal-type modules. The 200Ω input resistance and single-ended architecture are precisely matched to the characteristics of industrial current-loop transmitters, delivering consistent performance across all 16 channels .
- Innovation Point 5: Redundancy-Ready Architecture. The 51410069-275 supports fully redundant operation when paired with the appropriate redundant IOTA (CC-TAIX11) and a secondary module . This enables high-availability configurations for critical process measurements without changing the module itself—a single spare part serves both simplex and redundant installations.
