Description
Application Scenarios
A food-processing plant was preparing to add packaging-machine controls but did not want to purchase and wire the additional I/O modules before the equipment contract was finalized. The control cabinet already contained a partially populated Modicon Quantum rack, and several empty slots were exposed at the backplane.
Instead of leaving those positions open, the engineering team installed a 140XCP50000 in each unused discrete I/O location. The modules created a uniform rack profile and helped protect the backplane connectors from dust, accidental contact and handling damage during routine maintenance. When the expansion project moved forward, the maintenance team simply removed the dummy modules and installed the required I/O hardware.
This approach is particularly useful in phased upgrades, where control architecture and equipment scope change over time. The 140XCP50000 does not add control functions, but it supports disciplined spare-slot management and helps prevent a small housekeeping issue from becoming an expensive cabinet or backplane repair.
Parameter
| Main Parameters | Value / Description |
|---|---|

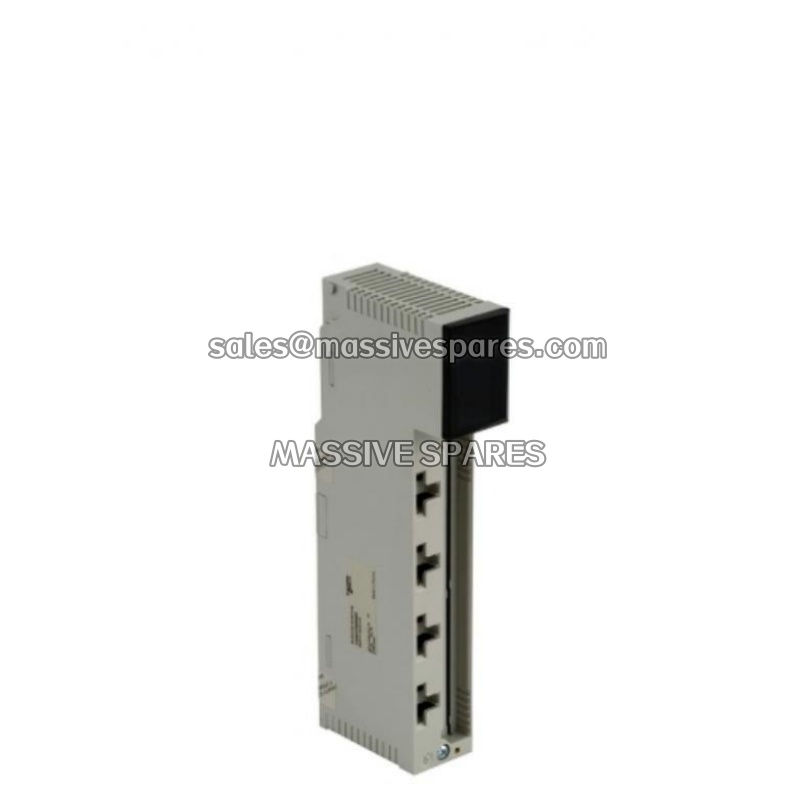

| Product Model | 140XCP50000 |
| Manufacturer | Schneider Electric |
| Product Category | Dummy module / rack accessory |
| Automation Platform | Modicon Quantum |
| Destination | Quantum discrete I/O module slots |
| Construction | Dummy module without terminal block |
| Active Electrical Function | None; the module does not process inputs or outputs |
| Wiring Requirement | None |
| Configuration Requirement | None; no PLC logic, addressing or parameter setup |
| Installation Method | Module-style installation in a compatible Quantum rack or backplane slot |
| Mounting Position | Any suitable unused discrete I/O module position, subject to the system layout |
| Dimensions | 5 cm × 17 cm × 32 cm |
| Product Weight | 312 g |
| Ingress Protection | IP20, consistent with typical indoor control-panel protection |
| Sustainability Status | Green Premium product |
| Hazardous Substance Status | Mercury-free; product environmental documentation is available |
| Contractual Warranty | 18 months under Schneider Electric’s standard warranty terms |
| Lifecycle Status | Discontinued; end of sale on 10 September 2026 |
| Standard Service Status | Scheduled to end on 31 December 2030 |
| Recommended Replacement | BMXXEM010 protective cover for unoccupied Modicon M340 rack slots |
