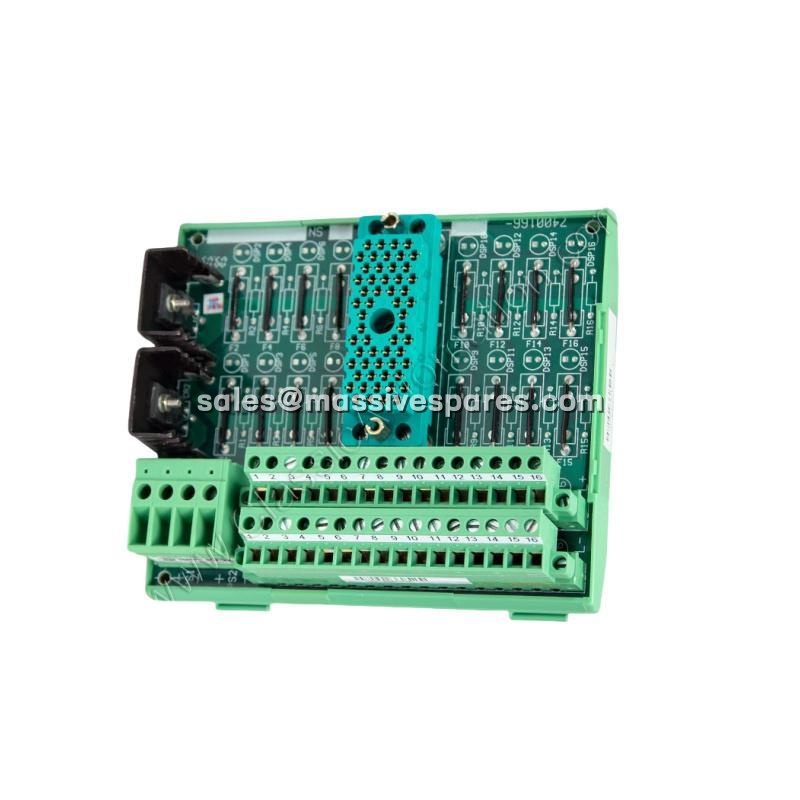

TRICONEX 9662-610 Termination Board Compatible with 3624/3625/3664/3674 Modules

Brand ABB, Triconex

Model TRICONEX 9662-610

Product Overview

The TRICONEX 9662-610 is a standard termination board engineered for use within Triconex Safety Instrumented Systems (SIS), specifically designed to interface with 24 VDC digital output modules in Tricon v9 and v10 architectures. As a critical field wiring interface component, the TRICONEX 9662-610 provides reliable physical electrical connections between field-mounted digital output devices and Triconex controller modules, ensuring organized signal distribution and simplified wiring management in safety-critical applications.

The Invensys TRICONEX 9662-610 features a commoned termination panel design supporting 16 output points with shared power terminals (PWR+ and PWR–), which significantly reduces installation complexity by allowing multiple output devices to share a common power supply. Each output point is individually protected by a fuse with integrated blown-fuse LED indicators, enabling rapid fault identification and enhanced system diagnostics during maintenance operations. The board is compatible with Triconex digital output modules including the 3624, 3625, 3664, and 3674 series, making it a versatile termination solution across multiple I/O configurations.

In terms of construction, the TRICONEX 9662-610 utilizes copper bus traces and protective insulation to maintain signal integrity across all connected circuits, while integrated filtering capacitors help stabilize transient load switching conditions. The passive hardware design of the Invensys TRICONEX 9662-610 means no external power consumption is required for operation, further enhancing its reliability and simplifying cabinet wiring layouts.

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	TRICONEX 9662-610
Alternative Part Number	7760050028
Manufacturer	Invensys / Triconex (Schneider Electric)
Product Type	Standard Termination Board / Panel
Panel Configuration	Commoned termination panel
Number of Output Points	16
Output Voltage Compatibility	24 VDC digital output systems
Maximum Total Current	16 A per termination panel
Current Limit with 3625 Module	10 A maximum to limit module power dissipation
Power Terminals	Commoned PWR+ and PWR– distribution terminals
Compatible I/O Modules	3624, 3625, 3664, 3674 digital output modules
Fuse Protection	Individual fuse per output point with blown-fuse LED indicators
Isolation	Field-to-system isolation
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Mounting Type	Panel-mounted for Tricon control cabinets
Interface Connection	Ribbon cable or system connector to digital output modules
Weight	Approx. 0.9 kg

Main Features and Advantages

Commoned Termination Design: The TRICONEX 9662-610 employs a commoned panel architecture with shared PWR+ and PWR– terminals, allowing multiple field output devices to operate from a single power distribution point. This design eliminates redundant wiring runs and simplifies cabinet layout, reducing installation time and material costs for safety system integrators.

Individual Fuse Protection with Diagnostics: Each of the 16 output points on the Invensys TRICONEX 9662-610 is protected by an individual fuse, and blown-fuse LED indicators provide immediate visual confirmation of circuit faults. This feature enables maintenance personnel to quickly identify and isolate failed circuits without disrupting other operational output channels, significantly reducing troubleshooting time in safety-critical processes.

Seamless Triconex Integration: The TRICONEX 9662-610 connects directly to Triconex digital output modules including the 3624, 3625, 3664, and 3674 series via ribbon cable or system connector interface. This direct compatibility ensures reliable signal transmission and eliminates the need for intermediate interface hardware, streamlining system architecture in Tricon v9-v10 SIS installations.

Robust Industrial Construction: Built with copper bus traces and protective insulation, the TRICONEX 9662-610 maintains stable electrical performance under varying load conditions. Integrated filtering capacitors stabilize transient switching events, while the panel-mounted form factor ensures secure installation within Tricon control cabinets where vibration and temperature fluctuations are common operational challenges.
