Description
Application Scenarios
At a large refining and petrochemical complex in East China, the DCS system needed to control more than 200 regulating valve loops simultaneously. After years of operation, the original analog output modules developed inter-channel signal crosstalk, causing valve position feedback to fluctuate periodically by 2%–3%, which steadily degraded the temperature control accuracy of the fractionation tower. After replacing the output modules in critical control loops with the Yokogawa AAI543-S00 S1, the full electrical isolation between channels completely eliminated common-mode interference, reducing valve position control fluctuation to within 0.5% and increasing product yield by approximately 1.2%. This improvement directly demonstrates the critical value of the AAI543-S00 S1 as the “last mile” of control commands in large-scale continuous process industries.
Parameters
| Parameter | Value/Description |
|---|---|

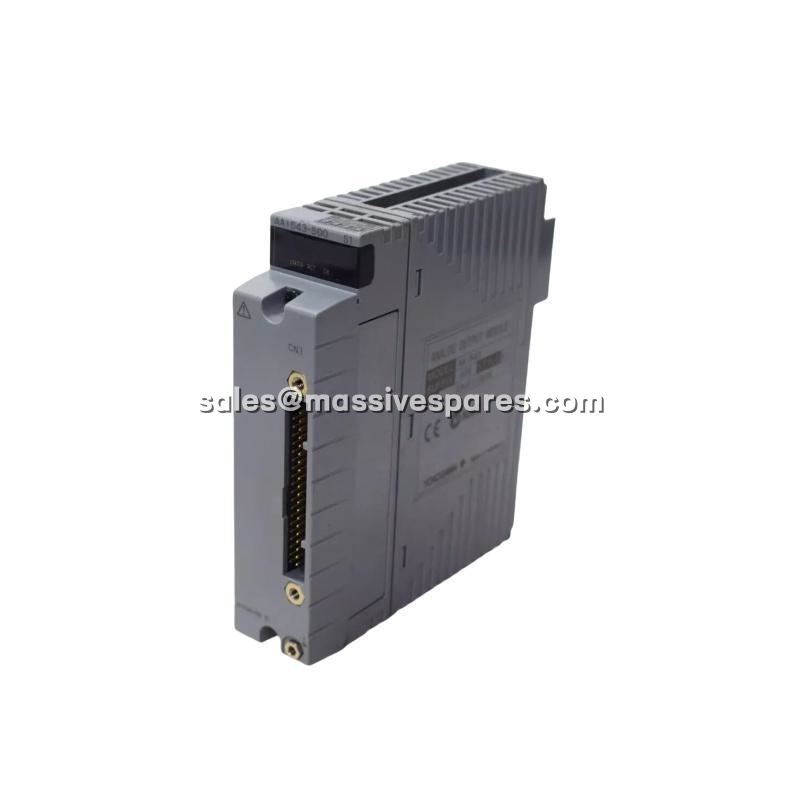

| Product Model | AAI543-S00 S1 |
| Manufacturer | Yokogawa |
| Product Category | Analog Output Module |
| Output Channels | 16 channels, channel-to-channel isolation |
| Output Signal Range | 4–20 mA DC |
| Allowable Load Resistance | 0–750 Ω |
| Output Accuracy | ±48 µA |
| Data Update Cycle | 10 ms |
| Wire Break Detection Threshold | Alarm triggered below 0.65 mA |
| Withstand Voltage (Output to System) | 1500 V AC for 1 minute |
| Redundancy Support | Dual-module redundancy with standard switching response |
| Maximum Current Consumption | 230 mA (5 V DC) / 540 mA (24 V DC) |
| Operating Temperature | 0°C to +60°C (standard type) |
| Compatible Systems | CENTUM VP / CENTUM CS 3000 |
Technical Principles and Innovative Values
- Innovation Point 1: Full channel-to-channel isolation architecture. All 16 output channels of the AAI543-S00 S1, as well as each channel to the system backplane, are electrically isolated with a withstand voltage of 1500 V AC. This design fundamentally cuts off the conduction path of field-side ground loops and common-mode voltages, ensuring that a single channel fault will not affect adjacent channels in densely installed multi-loop cabinet environments.
- Innovation Point 2: 10 ms deterministic data update. In PID closed-loop control, the output refresh cycle directly determines the upper limit of control quality. The 10 ms update cycle of the AAI543-S00 S1, combined with 16-bit D/A conversion accuracy, enables valve positioners to receive a nearly continuous stream of position commands, effectively suppressing control oscillation caused by output lag.
- Innovation Point 3: Redundant bumpless switching and intelligent diagnostics. The AAI543-S00 S1 supports dual-module hot-standby redundancy, completing switchover within 100 ms upon primary module failure. Meanwhile, the built-in wire break detection circuit continuously monitors loop current and immediately reports diagnostic information when current drops below 0.65 mA, transforming traditional reactive maintenance into real-time early warning.
