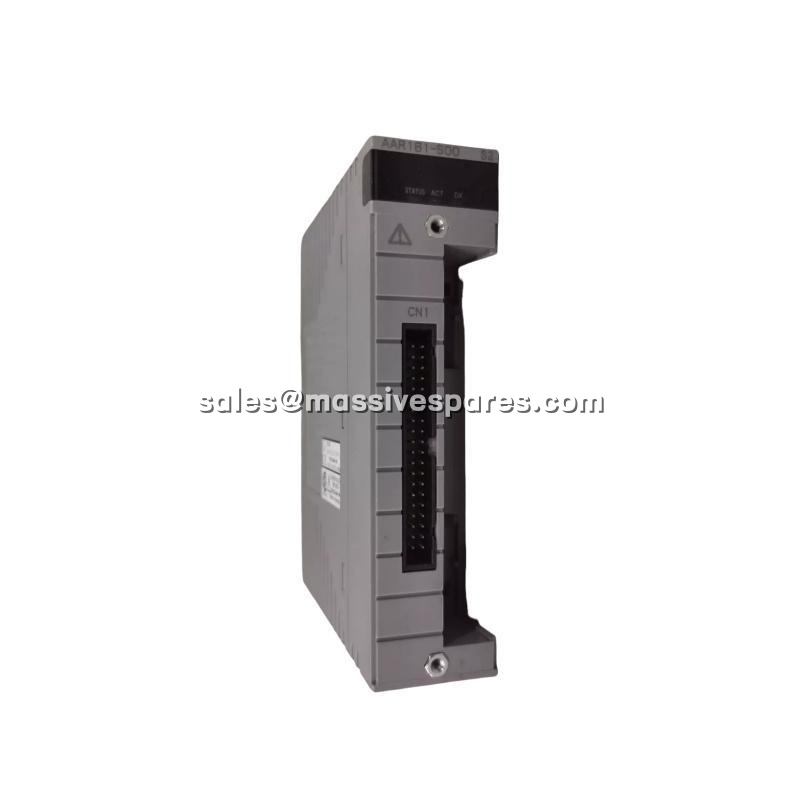

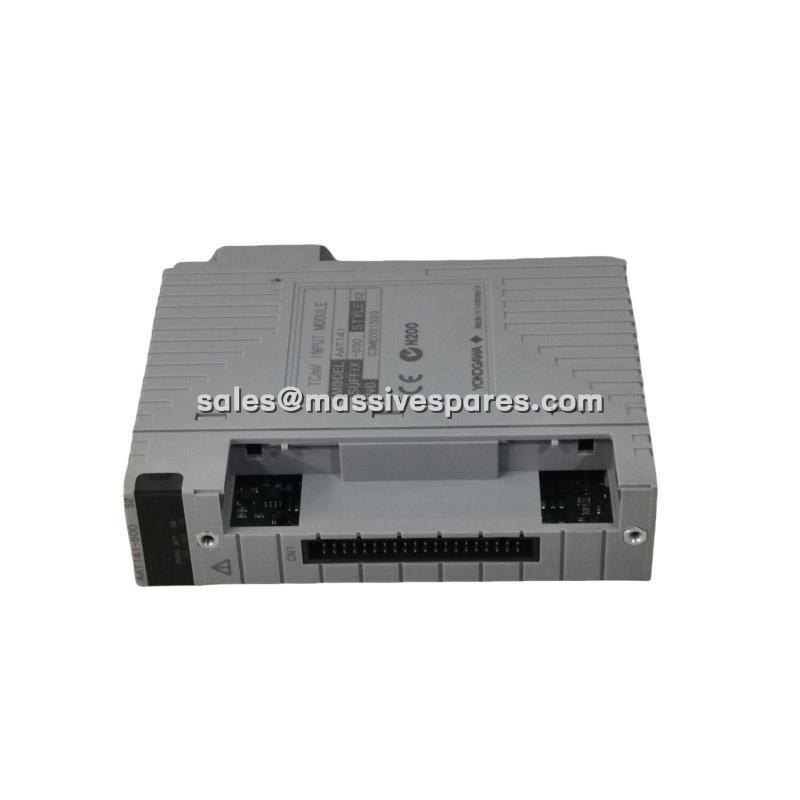

YOKOGAWA AAR181-S00 S2 16-Point RTD Input Module for CENTUM VP

Description

Application Scenarios

In a petrochemical refinery‘s catalytic reforming unit, reactor inlet temperatures must be maintained within tight tolerances to optimize yield and prevent catalyst degradation. A drift of even a few degrees across multiple measurement points can signal coke buildup or flow maldistribution, leading to unplanned shutdowns costing hundreds of thousands of dollars per day. The YOKOGAWA AAR181-S00 S2 is installed in the FIO rack, continuously sampling sixteen Pt100 RTD sensors distributed across the reactor bed. Its channel-to-channel isolation eliminates ground-loop interference between sensors mounted at different electrical potentials, while the module’s built-in burnout detection immediately flags any open-circuit or short-circuit condition.

For plant operators, the value of the YOKOGAWA AAR181-S00 S2 lies in its ability to transform a dense network of temperature sensors into a trustworthy, real-time thermal profile of the reactor. This visibility enables engineers to detect maldistribution early, adjust operating parameters proactively, and avoid the costly consequences of temperature excursions. The module’s compact 16-channel design also reduces cabinet space and wiring complexity compared to using multiple lower-density modules, simplifying both installation and maintenance.

In another scenario, a power plant‘s steam turbine monitoring system relies on the YOKOGAWA AAR181-S00 S2 to track bearing metal temperatures across sixteen measurement points. The module’s fast data update and high accuracy ensure that any abnormal temperature rise—often the first indication of lubrication failure or misalignment—is captured and transmitted to the protection system without delay.

Parameter
