Description
Application Scenarios

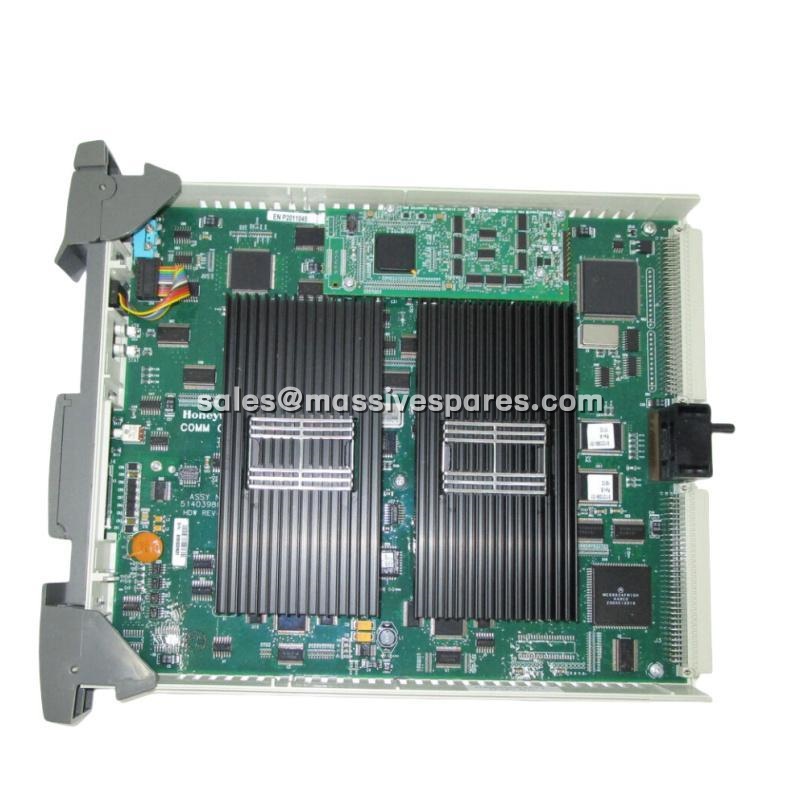

In a large-scale refinery or petrochemical complex, the HPM controller must simultaneously execute hundreds of regulatory control loops, manage interlock logic, and communicate with operator stations and I/O subsystems without interruption. When a process upset occurs—such as a sudden pressure surge in a distillation column—the controller must respond within deterministic time windows to adjust valves and maintain safe operation. A communication bottleneck or processor overload at this critical moment could cascade into a plant-wide trip. The 51401635-150 addresses this by combining dual Motorola processors (68LC040 for communications and 68040 for control) on a single card, ensuring that network traffic management and control execution occur in parallel rather than competing for resources . For plant operators, this translates into predictable scan times even under peak load conditions, providing the confidence that the control system will respond as designed when the process demands it most.
Parameter
| Main Parameters | Value/Description |
|---|---|
| Product Model | 51401635-150 (also 51401635150, 51401635-100) |
| Manufacturer | Honeywell |
| Product Category | HPM Communication/Control Processor Card |
| System Platform | TDC 3000 / Experion PKS, HPMM card set |
| Communications Processor | Motorola 68LC040 |
| Control Processor | Motorola 68040 |
| Network Interface | Universal Control Network (UCN) via HPM UCN Interface module |
| I/O Communications | I/O Link Interface to IOPs and I/O Link Extenders |
| Redundancy | HPMM redundancy interface and control |
| Card-File Position | First left-most HPMM slot |
| Front Indications | Power LED, Status LED, UCN A/B activity, 4-character diagnostic display |
| Coating | Conformal coating (ORU configuration) |
| OEM Status | Obsolete; replacement listed as 51403988-150 |
| Weight | 1.2 kg |
Technical Principles and Innovative Values
Innovation Point 1: Dual-Processor Architecture for Parallel Communication and Control. The 51401635-150 houses two distinct Motorola processors—a 68LC040 dedicated to communications processing and a 68040 dedicated to control execution . This separation prevents network communication tasks from degrading regulatory loop performance during periods of high UCN traffic. In systems where a single processor must handle both functions, communication bursts can introduce scan-cycle jitter that compromises control precision. The 51401635-150 eliminates this trade-off, ensuring deterministic control execution regardless of network load.
Innovation Point 2: Conformal Coating for Harsh Environmental Protection. The “coated” designation in the 51401635-150 part number indicates that the PCB assembly receives a conformal coating that protects against moisture, sulfur compounds, conductive dust, and other airborne contaminants common in refinery, chemical, and power generation environments . This coating extends the operational life of the card in control rooms where atmospheric contaminants would otherwise cause corrosion-related failures on exposed PCB traces and component leads.
Innovation Point 3: Integrated Redundancy Interface for Hot Standby Operation. The 51401635-150 incorporates an HPMM redundancy interface directly on the card, enabling two HPM controller sets to operate in a synchronized hot-standby configuration . When the active controller experiences a fault, the standby unit assumes control without process interruption. This capability is essential in continuous-process industries where even a momentary loss of control could result in off-specification product, equipment damage, or safety incidents.
