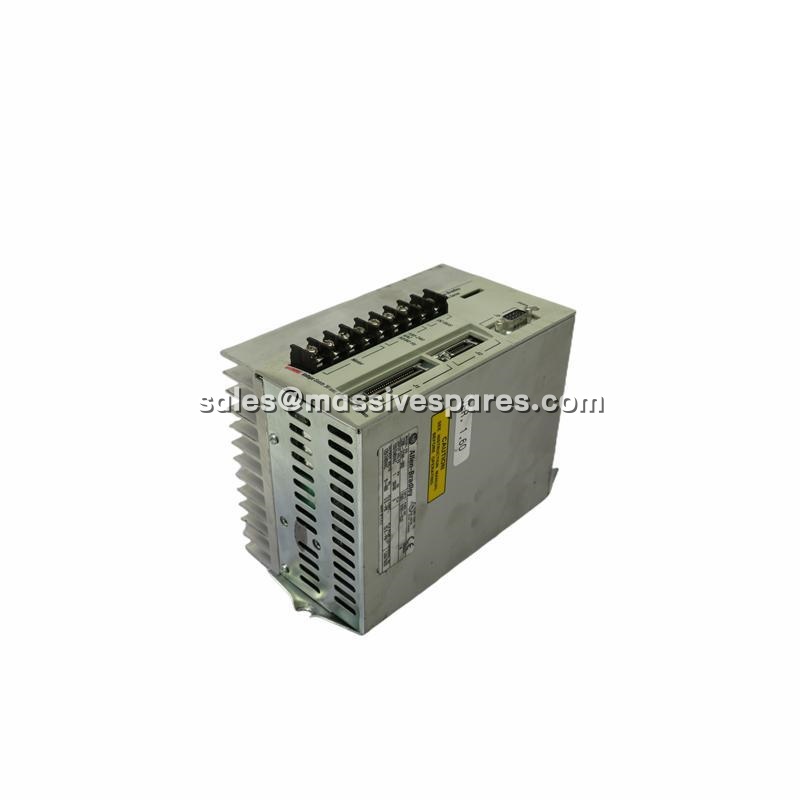

Allen-Bradley 1398-DDM-009 Ultra 100 Servo Drive – 1 kW Single Phase

Brand Allen-Bradley

Model Allen-Bradley 1398-DDM-009

Product Overview

The Allen-Bradley 1398-DDM-009 is a digital servo drive belonging to the ULTRA 100 Series, a family of universal digital drives designed for precise motion control applications. As a compact, single-axis servo drive, the Allen-Bradley 1398-DDM-009 digitally manages current, velocity, and position loops using microcontroller-based control algorithms, ensuring repeatable performance and eliminating the element drift associated with analog control systems . The drive delivers 1 kW continuous output power (1.5 HP) with a peak current of 15 A, making it well-suited for single-phase systems operating between 100 and 240 VAC at 50/60 Hz .

Positioned as a versatile motion control solution, the Allen-Bradley 1398-DDM-009 supports multiple operating modes including indexing, velocity servo, stepper emulation, and master encoder following . The drive’s fully digital architecture enables configuration via Windows-based Ultra Master software, allowing quick setup, commissioning, and troubleshooting . The Allen-Bradley 1398-DDM-009 requires an external 12-24 VDC power source for its I/O logic, while the main power stage operates directly from single-phase AC line power without requiring an external transformer .

As part of the now-discontinued ULTRA 100 product line, the Allen-Bradley 1398-DDM-009 remains a critical spare component for facilities maintaining legacy servo systems. Its compact design, comprehensive interface options, and proven reliability continue to make it a sought-after drive for industrial motion control applications .

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	1398-DDM-009
Manufacturer	Allen-Bradley
Product Type	Digital Servo Drive
Product Line	ULTRA 100 Series
Continuous Power Output	0.6 kW @ 120 VAC; 1.2 kW @ 240 VAC
Peak Power Output	1.3 kW @ 120 VAC; 2.7 kW @ 240 VAC
Output Peak Current	15 A
AC Input Voltage	100-240 VAC RMS (Single Phase)
AC Input Frequency	47-63 Hz
AC Input Current	9 A RMS
DC Bus Voltage	141-339 VDC
I/O Power Requirement	External 12-24 VDC
Operating Temperature	0°C to 55°C
Dimensions	7.80 x 3.83 x 5.75 in (198 x 97 x 146 mm)
Weight	Approximately 4.5-5 lbs (2.05 kg)

Main Features and Advantages

Fully Digital Control Architecture: The Allen-Bradley 1398-DDM-009 employs microcontroller-based digital control for current, velocity, and position loops. This architecture ensures repeatability of all motion functions and eliminates the drift and calibration issues inherent to analog servo systems. Parameters are stored in non-volatile memory and set via software, providing consistent performance across power cycles .

Comprehensive Interface Options: The Allen-Bradley 1398-DDM-009 offers a wide range of command interfaces to suit diverse application requirements. These include ±10 V analog inputs for position, velocity, or torque control; preset binary inputs for multi-speed operation; step/direction and CW/CCW digital interfaces for position control; and a quadrature encoder interface for electronic gearing . This interface flexibility allows the drive to integrate into various control architectures without additional conversion modules.

Advanced Protection and Diagnostics: The Allen-Bradley 1398-DDM-009 incorporates Intelligent Power Module technology in its output stage, providing overcurrent, short circuit, and overtemperature protection. Additional diagnostics include bus overvoltage and undervoltage monitoring, watchdog timers, and I²T motor overload protection. A bi-color LED provides visual status indication for quick fault identification .

Compact Integrated Design: The Allen-Bradley 1398-DDM-009 houses all electronics in a single enclosed unit, eliminating the need for external transformers on the power line. All connectors and indicators are accessible and clearly marked on the front panel, simplifying installation and maintenance .
