Description
Application Scenarios
Picture a 1990s-vintage automotive stamping line running on a PLC-5/80 controller, where the primary HMI at the die-change station has been in continuous service for over two decades and is now failing under daily vibration and hydraulic-mist exposure. Operators need a replacement that drops into the existing 257 mm × 390 mm panel cutout, reconnects to the same Remote I/O trunk without re-writing ladder logic, and still drives a hard-wired serial alarm printer that quality inspectors rely on for shift-end sign-offs. The 2711-K10C1 addresses this pain point directly: its 10-inch 640 × 480 color TFT renders the original process mimic with color-coded die status, fault zones, and hydraulic-pressure gauges, while the embedded RIO port daisy-chains onto the existing blue-hose trunk the same way its predecessor did — no gateway, no PLC program modification, no operator retraining. On the same plant floor, the RS-232 printer port of the 2711-K10C1 continues to feed the alarm log, preserving the audit trail that ISO compliance demands.
Parameter

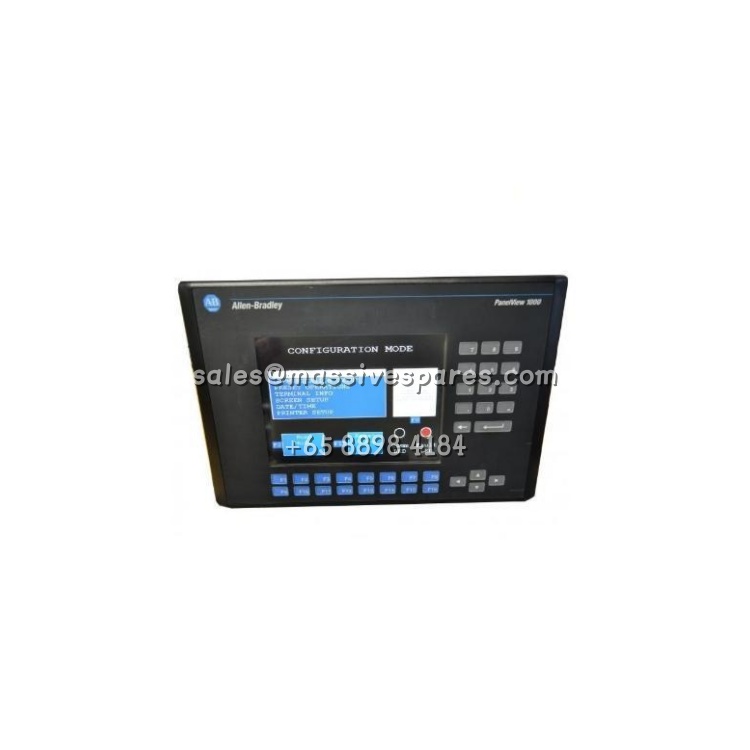

| Main Parameters | Value / Description |
|---|---|
| Product Model | 2711-K10C1 (Series A through F, plus 2711-K10C1X) |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Category | PanelView 1000 Standard Color Keypad Operator Terminal (HMI) |
| Display Size & Type | 10-inch color active-matrix TFT, 32 standard colors |
| Display Resolution | 640 × 480 pixels (VGA), viewing area 211 × 158 mm (8.3 × 6.2 in.) |
| Operator Input | Stainless-steel domed membrane keypad, 16 function keys (F1–F16) |
| Keypad Durability | 1 million press actuation life per key |
| Communication Ports | Remote I/O (RIO) + RS-232 printer port |
| Supply Voltage | 85–264 V AC, 47–63 Hz |
| Application Memory | 310 KB application runtime; 1008 KB nonvolatile memory |
| Backlight | Cold-cathode fluorescent, 50,000 hr to ½ brightness at 25 °C |
| Enclosure Rating | NEMA 12/13, NEMA 4X (indoor use only), IEC IP54/IP65 |
| Operating Temperature | 0 to 55 °C (32 to 131 °F) |
| Terminal Dimensions | 282 mm H × 423 mm W × 112 mm D (11.11 × 16.64 × 4.40 in.) |
| Panel Cutout | 257 mm × 390 mm (10.11 × 15.35 in.) |
| Weight | 3.7 kg (8.2 lb) |
| Programming Software | PanelBuilder32 (catalog 2711-ND3) |
| Certifications | UL 508, CSA 22.2 No. 142, UL 1604 Class I Div 2 Groups A/B/C/D T4 |
