Description
Application Scenarios
In a refinery’s hydrocracker unit, precise control of feed flow and reactor temperature depends on accurate valve positioning. When an analog output channel drifts or fails, product quality degrades and safety margins narrow. Maintenance teams often struggle to distinguish between a faulty valve positioner and a failing output module, leading to extended troubleshooting and unnecessary field visits.

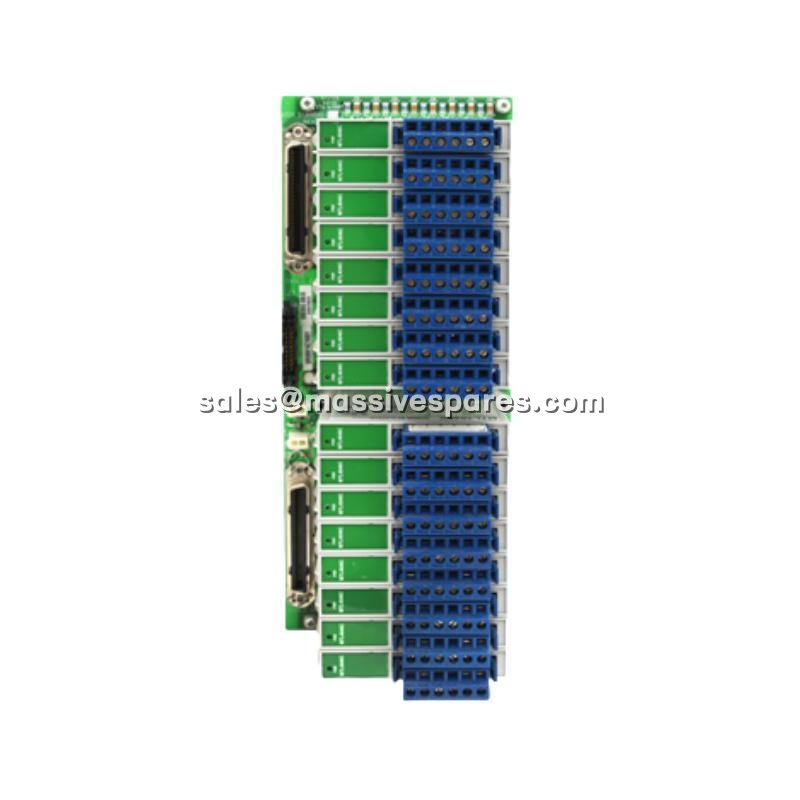

The Honeywell 51309540-175 addresses this pain point through HART-enabled output channels that continuously communicate with smart valve positioners. Operators can read valve stem position, actuator pressure, and diagnostic alerts directly from the control room, identifying the exact source of control loop problems without dispatching technicians to the field . With 16 independent channels in a single rack-mounted assembly, the 51309540-175 concentrates control interface capacity in minimal cabinet space, simplifying wiring and reducing installation time .
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | 51309540-175 (MC-GHAO11) |
| Manufacturer | Honeywell |
| Product Category | Analog Output Field Termination Assembly (FTA) |
| Output Channels | 16 independent analog outputs |
| Output Signal | 4–20 mA current loop |
| Load Drive Capacity | Up to 870 Ω per channel |
| Output Resolution | ±0.05% nominal |
| Output Linearity | ±0.05% nominal |
| Readback Accuracy | ±4% |
| Failover Response | 20 ms maximum (0 mA to field) |
| HART Support | Built-in filters and multiplexer connector |
| Isolation | Galvanically isolated outputs |
| Mounting Type | Rack-mounted |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Certifications | UL, CSA, CE, TÜV |
