Description
Application Scenarios
In a petrochemical plant control room, operators relied on Honeywell Universal Stations to monitor and control critical process units. Over time, the aging EPDG boards began exhibiting display artifacts and intermittent cursor tracking issues, causing operators to lose confidence in the console displays during high-stress process upsets. By replacing the failing boards with the Honeywell 51402089-100 EPDG2, the plant restored crisp, reliable video output and precise cursor response. The improved peripheral compatibility of the second-generation board also allowed continued use of existing trackball and touchscreen interfaces without modification, extending the operational life of the TDC 3000 console infrastructure .
In a power generation facility, the control room Universal Station suffered a complete display interface failure, leaving operators without graphical process visualization. With the plant’s TDC 3000 system still years away from planned replacement, the maintenance team sourced a Honeywell 51402089-100 as a direct replacement for the failed EPDG board. The board’s SCSI interface allowed the team to restore trend data backup operations using the station’s existing Zip drive, while the integrated keyboard and cursor controllers eliminated the need for separate interface cards. The station was returned to full operational status within a single shift .
Parameter
| Parameter | Value/Description |
|---|---|

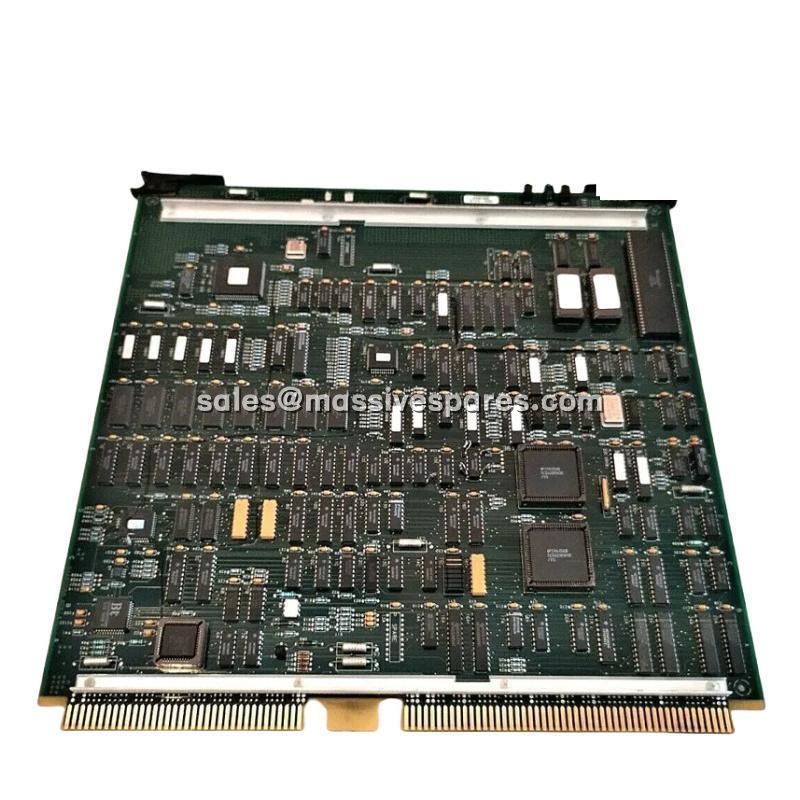

| Product Model | Honeywell 51402089-100 |
| Manufacturer | Honeywell |
| Product Category | Display Interface Board / EPDG2 Enhanced Peripheral Display Generator |
| System Platform | Honeywell TDC 3000 Universal Station |
| Primary Function | Video signal generation, peripheral communication, SCSI storage control |
| Peripheral Support | Keyboard, mouse, trackball, touchscreen, printer |
| Storage Interface | SCSI for Bernoulli or Zip drives |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Relative Humidity | 0–95% non-condensing |
| Compatibility | TDC 3000 Universal Stations (Classic and Ergonomic) |
| Associated Paddle Boards | EPDGP (51404584-100), EPDGC-1 (51402447-100), EPDGC-2 (51402447-200) |
| Country of Origin | United States |
Technical Principles and Innovative Values
- Consolidated Peripheral Control Architecture: The Honeywell 51402089-100 integrates multiple interface functions onto a single board, managing video generation, SCSI storage communication, cursor input decoding, keyboard communication, and printer output simultaneously . This consolidation eliminates the need for separate standalone controller cards within the Universal Station chassis, reducing slot usage, power consumption, and potential failure points. For facilities maintaining legacy TDC 3000 consoles, this integration density simplifies spare parts inventory and reduces the number of unique components requiring lifecycle management.
- Second-Generation EPDG Enhancement: As the successor to the first-generation EPDG (51401286-100), the Honeywell 51402089-100 offers improved hardware compatibility with later-revision Universal Station components . The EPDG2 design provides extended support for CE-compliant I/O paddle boards, enabling installations in regulated environments where electromagnetic compatibility certification is mandatory. This generational improvement ensures that facilities upgrading their console hardware can maintain regulatory compliance without replacing the entire operator station infrastructure.
- Precise Cursor Trajectory Processing: The Honeywell 51402089-100 incorporates onboard tracking circuits that decode touchscreen, mouse, and trackball inputs with minimal latency . In control room environments where operators must respond rapidly to process alarms and trending deviations, cursor lag or drift can delay critical interventions. The EPDG2’s immediate input processing ensures that operator commands are translated into system actions without perceptible delay, maintaining the responsiveness essential for safe process control.
- Electromagnetic Noise Immunity: The Honeywell 51402089-100 is engineered with heavy grounding pads and integrated shielding layers that insulate low-voltage input/output signals from radio frequency and electrical noise generated by surrounding control room monitors and power cables . This shielding prevents signal corruption that could otherwise manifest as erratic cursor movement, display flicker, or keyboard input errors—failures that directly impact operator situational awareness during critical process events.
