Description
Application Scenarios
In a petrochemical facility’s emergency shutdown (ESD) system, dozens of pressure and temperature transmitters continuously monitor reactor vessel conditions. When a transmitter sends a 4-20 mA signal indicating abnormal pressure rise, that signal must be captured with absolute reliability and converted to a precise digital value within milliseconds. The TRICONEX 7400209-030 performs this function as part of the Tricon TMR architecture, where three independent processing channels simultaneously acquire and compare the incoming signal. If any discrepancy arises between channels, the system identifies the fault and continues operating on the two remaining valid signals. In a refinery turnaround project, maintenance engineers replaced aging analog input modules with 7400209-030 units without requiring rewiring of existing field terminations, minimizing downtime while restoring full SIL 3-rated analog acquisition capability.
Parameter
| Parameter | Value/Description |
|---|---|

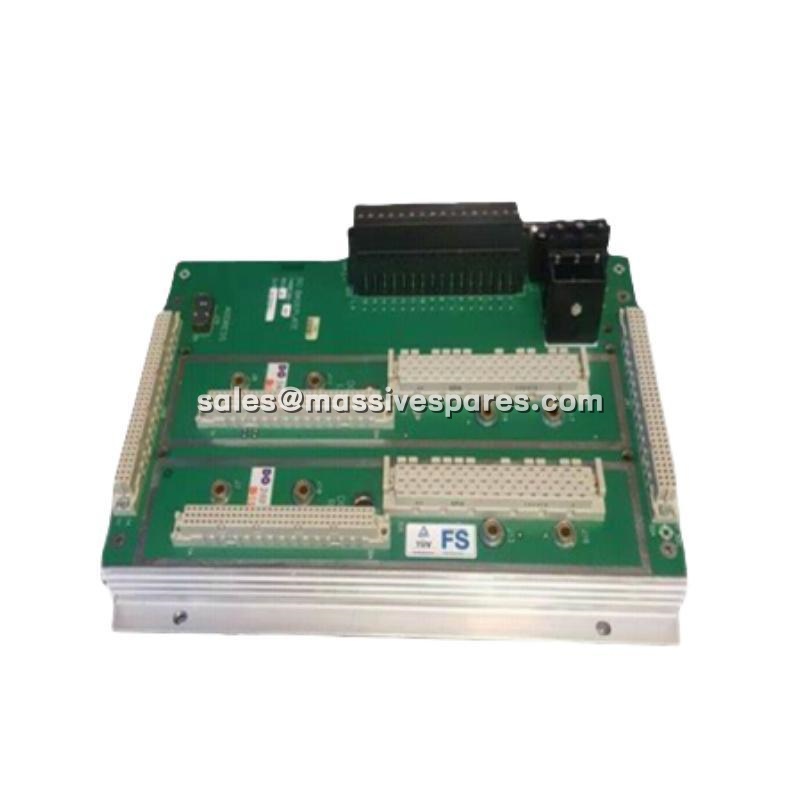

| Product Model | TRICONEX 7400209-030 |
| Manufacturer | Triconex (Schneider Electric) |
| Product Category | Analog Input Module / I/O Card |
| System Compatibility | Tricon TMR Safety and Control System |
| Analog Input Channels | 16 isolated channels |
| Input Signal Types | 0-20 mA, 4-20 mA |
| Input Type | Analog current loop |
| Sampling Rate | 1000 Hz |
| Communication Interface | Ethernet, RS-485 |
| Operating Voltage | 24 V DC |
| Power Consumption | 5 W |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA; IEC 61508 SIL 3 capable |
| Dimensions | Approx. 22.0 cm x 16.9 cm x 4.4 cm |
| Weight | Approx. 0.8 kg |
Technical Principles and Innovative Values
Innovation Point 1: Triple Modular Redundant Architecture Support. The 7400209-030 is engineered to operate within Triconex’s TMR framework, where three independent channels process the same analog input simultaneously. Hardware voting logic compares the three digital representations, and if one channel diverges from the other two, the outlier is automatically excluded. This architecture ensures that no single component failure can cause an incorrect control action or mask a genuine process deviation, delivering the fault tolerance essential for SIL 3 safety functions.
Innovation Point 2: High-Resolution Signal Conversion for Critical Measurements. The 7400209-030 converts 4-20 mA and 0-20 mA signals with high precision, preserving the integrity of process variable data from pressure, temperature, level, and flow transmitters. This precision is especially important in safety instrumented functions where a small measurement error could delay a protective action or, conversely, cause a spurious trip.
Innovation Point 3: Robust Environmental Design for Extreme Conditions. With an operating temperature range spanning -40°C to +70°C and humidity tolerance from 5% to 95% non-condensing, the 7400209-030 is built for installation in field cabinets, offshore platforms, and other unregulated environments where standard commercial electronics would fail . The module’s construction resists vibration, electrical noise, and atmospheric contaminants common in heavy process industries.
