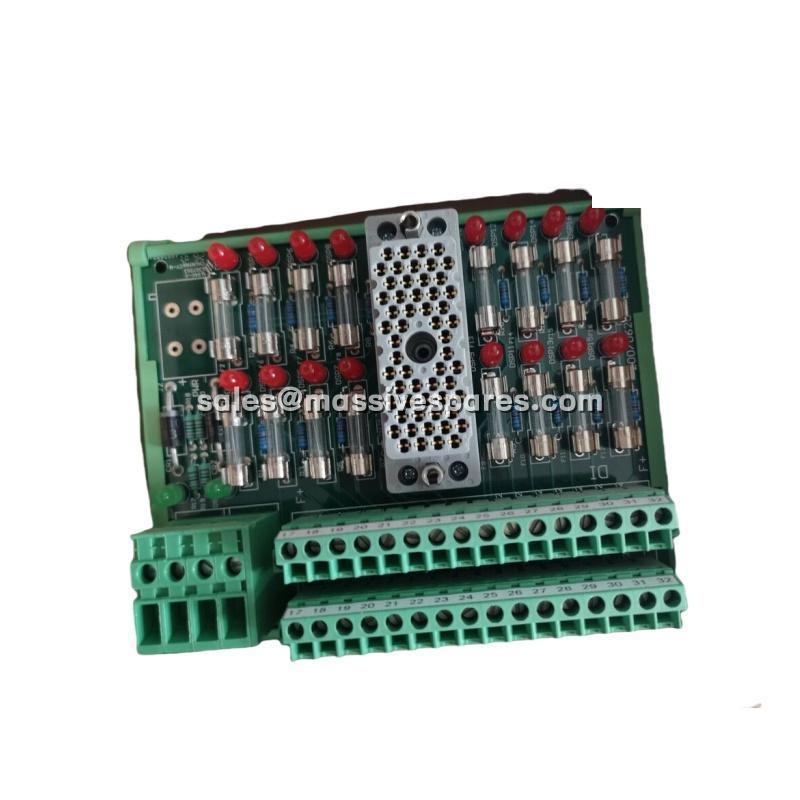

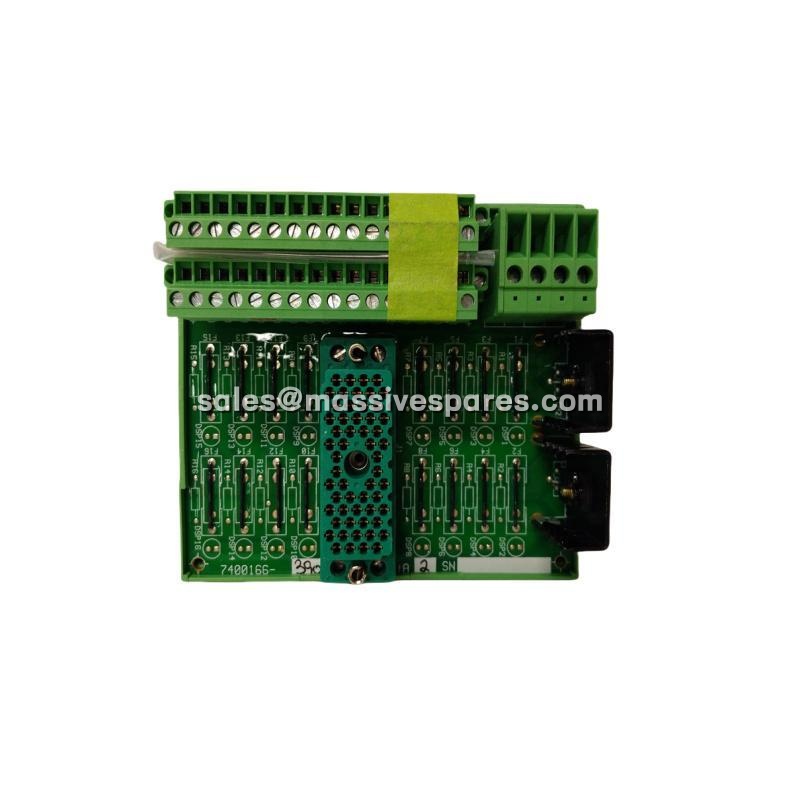

Triconex 9563-810 Digital Input Termination Panel — 24 V Commoned 16-Point Field Termination for TMR Safety Systems

Brand Triconex

Model Triconex 9563-810

Product Overview

The Triconex 9563-810 is a factory-engineered digital input termination panel that forms the physical bridge between plant-floor field wiring and the Triple Modular Redundant (TMR) input electronics of a Tricon safety system. Occupying the field termination layer of the Invensys Triconex architecture, the Triconex 9563-810 accepts 24 VAC/VDC discrete signals from limit switches, pressure and temperature switches, valve position contacts, flame detectors and gas detector relays, and routes them through a protected, clearly labelled path to the active digital input module seated in the Tricon chassis. Because the panel is a passive marshalling and fusing point, field cables land on it permanently while the active electronics can be removed or replaced without disturbing a single field conductor — a design that directly reduces downtime during module change-out and loop re-verification.

Belonging to the 16-point commoned family of Tricon v9–v10 field termination products, the Triconex 9563-810 provides 16 individually fused input points together with commoned power terminals (PWR+ and PWR–) that feed a shared excitation source to the connected devices. Each input carries its own slow-blow fuse and blown-fuse indicator, so a single field-side short circuit is contained at the channel level instead of propagating to the input card or the safety logic solver. Supplied with two label sets (1–16 and 17–32) and a factory-keyed connector for the Triconex interface cable, the Triconex 9563-810 is used in pairs to fully populate the 32 channels of a 3503E or 3505E module, making it the standard choice for SIL 3 emergency shutdown, fire and gas, and burner management loops.

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	9563-810
Manufacturer	Invensys / Schneider Electric Triconex
Product Type	Digital Input Field Termination Panel (Commoned, External Termination Panel / ETP)
System Platform	Tricon v9–v10 TMR Safety Instrumented System (SIS)
Panel Type	Commoned with PWR+ / PWR– common power terminals
Input Points	16 per panel (two panels required per 32-point DI module)
Rated Voltage	24 VAC/VDC
Compatible Modules	3503E (32 pts, 24 VAC/VDC, TMR with self-test), 3505E (32 pts, 24 VDC low-threshold, TMR)
Leakage Current per Point	2.5 mA typical, 3.3 mA maximum
Channel Protection	1 A slow-blow fuse per point with individual blown-fuse indicator
Field Wiring	Screw terminals, 24 AWG to 12 AWG (0.3 mm² to 2.1 mm²); terminal torque 4.425–5.310 lbf-in (0.5–0.6 N·m)
Module Interface	Factory-keyed multi-pin connector for Triconex interface cable (e.g. 4000094-310 / 9101-010 series); thumbscrew torque 8.85 lbf-in (10.0 d-N·m)
Keying	Small key position 1, large key position 3
Operating Temperature	–40 °C to +70 °C
Storage Temperature	–40 °C to +85 °C
Humidity	5 % to 95 % RH, non-condensing
Dimensions (W × H × D)	11.43 cm × 12.7 cm × 10.8 cm (4.5 in × 5.0 in × 4.25 in)
Approximate Weight	1.2 kg to 1.5 kg depending on revision
Mounting	DIN rail or direct panel mount inside the safety cabinet
Safety Compliance	Suitable for IEC 61508 / IEC 61511 SIL 3 safety instrumented loops; CE, UL recognized

Main Features and Advantages

Channel-level fault containment: Every one of the 16 inputs on the Triconex 9563-810 is protected by its own 1 A slow-blow fuse paired with a dedicated blown-fuse indicator. A short circuit, insulation breakdown or ground fault on one field loop therefore removes only that channel, leaving the remaining 15 points and the upstream TMR input module fully operational. In a safety system where a spurious trip carries a six-figure production penalty, this containment behaviour is one of the most valuable properties of the Triconex 9563-810.

Instant visual diagnostics: Maintenance technicians do not need a laptop, a TriStation connection or a downloaded diagnostic buffer to find a fault. A walk-down of the cabinet reveal s which channel has opened its fuse, cutting mean time to repair from hours to minutes. This is particularly valuable during night-shift call-outs and during plant turnarounds when dozens of loops are being re-commissioned at once.

Simplified wiring architecture: The commoned PWR+ and PWR– terminals distribute a single excitation source across the group of inputs, eliminating the individual return conductors that a non-commoned panel would require. Cabinet wiring time drops, terminal count drops, and the probability of a mis-landed return wire — one of the most common causes of repeated loop failures — falls significantly.

Decoupled maintenance philosophy: Because the Triconex 9563-810 is a passive termination and fusing layer, the active 3503E or 3505E module ahead of it can be withdrawn, replaced and re-seated without touching a single field conductor. Loop integrity is preserved across the full lifecycle of the safety system, which is exactly what regulators and SIL verification auditors expect to see in a well-managed brownfield installation.

Purpose-built for 24 V TMR input cards: The Triconex 9563-810 is engineered specifically around the electrical characteristics of the 3503E and 3505E — including their group-of-eight commoning structure and self-test behaviour — so leakage current stays at a typical 2.5 mA and the module’s internal diagnostics continue to report valid channel states rather than generating nuisance alarms.

Application Field

Emergency shutdown systems: The Triconex 9563-810 is deployed in ESD cabinets across refineries, gas processing plants and offshore platforms, where it terminates the discrete contacts of shutdown pushbuttons, pressure and level switches, and valve limit switches that drive 2oo3 voting logic. Its per-channel fusing ensures that a cable crushed during a turnaround cannot disable an entire shutdown card.

Fire and gas detection: Flame detector contacts, gas detector relay outputs and manual call-point circuits are landed on the Triconex 9563-810 because these loops are continuously energised and must remain available at all times. The blown-fuse indicators let operators confirm at a glance that every detector in the loop is still electrically alive, which is a requirement of most F&G cause-and-effect reviews.

Burner management and boiler protection: In fired heaters, boilers and gas turbines, purge-air proving switches, low-gas-pressure switches, flame scanner contacts and damper position feedback are terminated through the Triconex 9563-810, feeding burner management interlocks and turbine trip logic where sub-second, unambiguous state detection is mandatory.

Rotating equipment and machinery protection: Vibration switch trips, lube-oil pressure switches, seal-gas contacts and overspeed relay outputs from compressors, pumps and steam turbines are routinely marshalled on the Triconex 9563-810, giving the TMR controller clean, fused and individually identifiable status points for each machine train.

Process interlocks and brownfield migrations: Chemical reactors, batch plants, pipelines and power generation auxiliaries use the Triconex 9563-810 as the termination layer for safety interlocks, permissive circuits and switchgear status monitoring. During DCS-to-Tricon SIS migrations the panel lets existing field cables be re-landed onto new safety hardware with original loop characteristics preserved, keeping SIL verification and re-validation straightforward.

Nuclear and other high-integrity installations: Because the panel is part of the qualified Tricon field termination product family with documented key positions and traceable part numbering, the Triconex 9563-810 is also found in safety-grade applications where configuration control and part-number-for-part-number replacement are contractually required.
