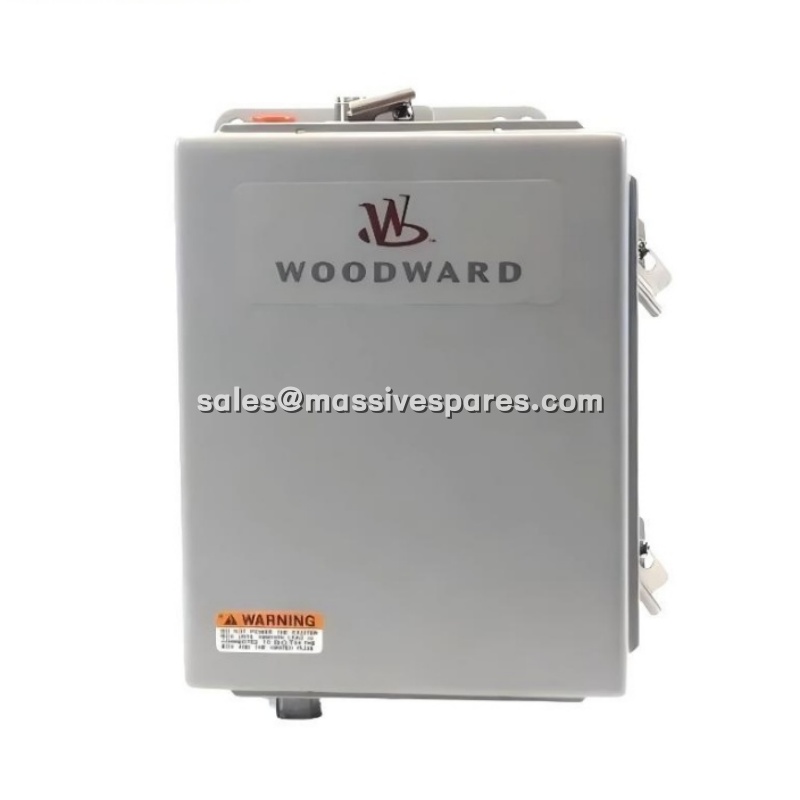

Woodward 8408-005 Generator Loading Control Module

Brand WOODWARD

Model Woodward 8408-005

In a data center equipped with three diesel generator sets as backup power, all three units must start and parallel quickly when the utility grid fails. If load distribution becomes uneven, one generator may carry excessive load and trip on overload, potentially collapsing the entire backup power system. The 8408-005 serves as the load-sharing control core in this scenario, continuously monitoring current and power data from each generator. Through its electronic load-sensing algorithm, it dynamically adjusts each unit‘s output to maintain proportional load sharing with ±1% accuracy. This precise control prevents overload risk on any single generator while keeping each engine operating at optimal fuel efficiency, reducing unnecessary fuel consumption and mechanical wear .

Request Price

Description

Parameter

Main Parameters	Value/Description
Product Model	8408-005
Manufacturer	Woodward
Product Category	Digital Governor Control Module / Generator Load Control
Supply Voltage	24 VDC nominal (control circuit); DC models operate 18–32 VDC
Power Consumption	Approximately 5 W (DC models); approximately 10 W (AC models)
Frequency Range	50 Hz / 60 Hz compatible
Load Sharing Accuracy	±1%
Control Modes	Isochronous load sharing, droop control
Protection Features	Overload protection, low-frequency detection, voltage stabilization support
Operating Temperature	−20°C to +70°C
Storage Temperature	−40°C to +85°C
Dimensions	273.6 × 214.1 × 59.2 mm
Weight	Approximately 1.5 kg
Installation	Panel or rack mount in generator control cabinets

Technical Principles and Innovative Values

Innovation Point 1: Precision Electronic Load-Sensing Architecture. The 8408-005 employs advanced load-sensing circuits that continuously monitor three-phase current and voltage signals from each paralleled generator. Through real-time regulation algorithms, the module calculates actual power output and issues adjustment commands within milliseconds when load demand changes . This electronic load-sharing approach delivers faster response and higher accuracy compared to traditional mechanical governors.
Innovation Point 2: Dual-Mode Control Flexibility. The 8408-005 supports both isochronous load sharing for isolated grids and droop control for parallel operation with utility supplies. Isochronous mode maintains constant frequency during load steps in island or shipboard power systems, while droop mode enables automatic load sharing with external grids. This flexibility allows one controller to cover multiple operating scenarios .
Innovation Point 3: Integrated LCD Diagnostics with Protective Safeguards. The onboard LCD screen provides real-time visibility into load percentages, system status, and fault codes, eliminating dependence on external monitoring tools for routine configuration and troubleshooting . Combined with built-in overload protection and low-frequency detection circuits, the 8408-005 delivers comprehensive visual safety monitoring that safeguards sensitive downstream electrical equipment .
