Description
Application Scenarios
In a hot-strip steel mill, the main stand DC motors operate under rapid load reversals during each rolling pass. Torque control depends on precise field current regulation—when the motor must run above base speed, the field exciter enters field-weakening mode, reducing field current to extend the speed range while maintaining stable torque output. If the field circuit fails or loses regulation, the armature bridge must be inhibited immediately; otherwise, with full armature voltage and vanishing flux, the motor speed theoretically approaches infinity—a catastrophic event in multi-megawatt rolling mill drives. The 3ADT314500R1001 serves as the computational and power interface at the heart of this control loop. It continuously monitors actual field current via a DC current transformer, compares it to the reference from the main controller, and generates firing pulses for the field-bridge thyristors. Its integrated fault-handling logic detects field loss and overcurrent, issuing trip signals that the main controller uses to execute safe shutdown. With DCS400/DCS500 platforms representing a substantial installed base globally, the SDCS-FEX-4 remains a strategic spare part protecting production continuity in metals processing, mine hoists, paper machines, and marine winch drives.
Parameter
| Main Parameters | Value/Description |
|---|---|

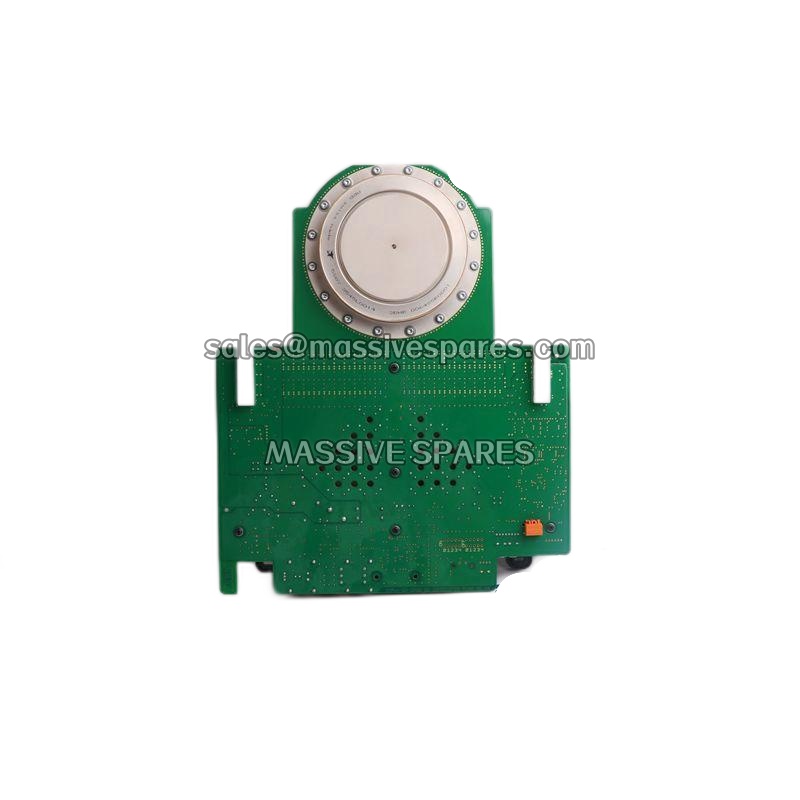

| Product Model | 3ADT314500R1001 (SDCS-FEX-4) |
| Manufacturer | ABB |
| Product Category | Field Excitation Control Board |
| Compatible Drives | DCS400, DCS500, DCS550, DCS800 series DC drives |
| Host Controller | SDCS-CON-2 / SDCS-CON-4 (SDCS backplane) |
| Input Voltage | 3-phase, 200–500 V AC, 50/60 Hz |
| Output Current | Up to 25 A DC (FEX-425-Int internal configuration) |
| Field Voltage Output | 0–500 V DC (dependent on input voltage) |
| Control Topology | Half-controlled three-phase thyristor bridge with free-wheeling diode |
| Current Regulation Accuracy | ±1% (microprocessor-based current loop) |
| Communication | DCSLink (CAN bus protocol, shielded twisted pair) |
| Auxiliary Supply | 24 V DC, max 200 mA |
| Operating Temperature | -10°C to +55°C (standard); -20°C to +60°C (coated variant) |
| Mounting | Plugin/chassis mount inside DCS drive cabinet |
| Dimensions (H×W×D) | Approx. 270 × 50 × 190 mm (module assembly) |
Technical Principles and Innovative Values
- Innovation Point 1: Local Closed-Loop Current Regulation with Automatic Scaling. The SDCS-FEX-4 is not merely a firing-pulse generator—it incorporates its own synchronization circuitry and current controller. The main controller sends only a field-current reference over DCSLink; the SDCS-FEX-4 handles actual current measurement, PI computation, and thyristor firing locally. Critically, the current measurement circuit is automatically scaled according to the rated motor field current, with the hardware burden resistors switched based on firmware settings (M1UsedFexType, parameter 99.12). Field currents between 0.3 A and 5 A use different terminals than the 5–25 A range, eliminating manual recalibration during spare-part replacement.
- Innovation Point 2: DCSLink Serial Communication for Deterministic Drive Coordination. The SDCS-FEX-4 communicates with the armature converter via DCSLink, a serial communication link based on CAN bus protocol using shielded twisted-pair cable. This link carries field-current reference, actual value telemetry, status words, and fault codes. The armature converter fully monitors the exciter’s operation; if DCSLink communication times out (typical threshold 100 ms, triggering fault F516), or if field current drops below threshold, the armature bridge is immediately inhibited. Node addressing is set via rotary switches S800 and S801, with communication speed and bus termination configured via S1100.
- Innovation Point 3: Multi-Configuration Flexibility with Single Hardware Platform. The SDCS-FEX-4 supports three distinct application modes through firmware and terminal configuration: FEX-425-Int (internal field exciter for D5 modules, up to 25 A), DCF803-0035 (external exciter, up to 35 A), and FEX-4 Term5A (low-current mode, up to 5 A). This versatility means a single board type serves applications ranging from small DC auxiliary drives to large main-stand rolling mill motors, simplifying spare-part inventory management.
- Innovation Point 4: Conformal Coating for Harsh-Environment Durability. The features factory-applied conformal coating across the PCB assembly, protecting electronic components against moisture, airborne contaminants, and corrosive atmospheric elements. This coating extends module lifespan in the demanding environments where DC drives remain prevalent: hot-strip mills with oil mist and metallic dust, mine hoists with high humidity, and paper machines with chemical exposure.
