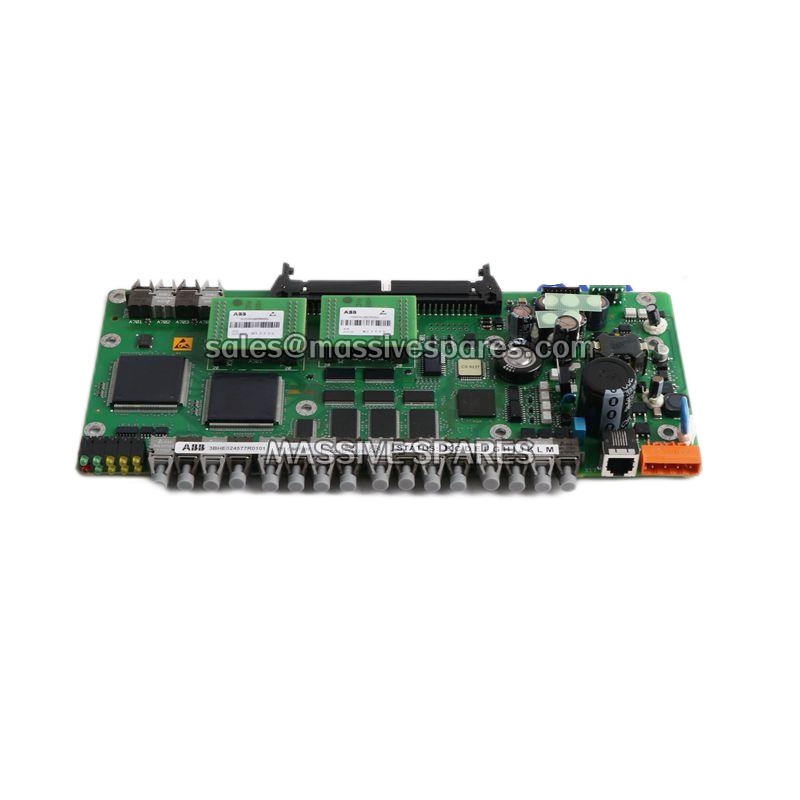

Description
Application Scenarios
At a petrochemical plant, a 15-year-old ACS6000 drive was running a large synthesis-gas compressor train. Over several months the operators saw sporadic drive trips with gate-driver fault codes, and the compressor occasionally shut down without an obvious process cause. Each unplanned trip cost the plant an estimated several hundred thousand dollars in lost production and re-start energy.
Analysis pointed to ageing gate-unit power supplies: the +20 V and -15 V rails were drifting outside tolerance, which narrowed the IGCT’s safe turn-off window and caused spurious fault trips. By replacing the affected units with fresh, tested ABB 3BHB005243R0105 modules, the maintenance team restored the full ±20 % tolerance on the 24 V DC input and re-established clean, stable gate-pulse rails. Over the following 14 months, gate-driver faults dropped to zero and the compressor train achieved 99.7 % availability through two consecutive summer demand peaks. The drive engineer’s comment afterwards was: “The KUC755AE105 is small, but it’s the difference between a drive that runs and a drive that trips. Keeping a tested spare on the shelf is non-negotiable for us now.”
Parameter
| Main Parameters | Value/Description |
|---|---|
| Product Model | 3BHB005243R0105 |
| Type Designation | KUC755AE105 (S KU C755 AE105:GUSP) |
| Manufacturer | ABB |
| Manufacturing Origin | Switzerland (CH) |
| Product Category | Gate Unit Power Supply (GUSP) / IGCT Gate Driver Power Module |
| Compatible Platforms | ABB ACS6000 (315 kW – 27 MW), ACS6000SD, ACS6000c; PCS6000; UNITROL 6000; SVG |
| Driven Power Device | ABB 5SHY-series IGCTs (3.3 kV, 4.5 kV, 6.5 kV classes) |
| Auxiliary Input Voltage | 24 V DC ±20 % (19.2 – 28.8 V DC) |
| Typical Input Current | 3.5 A @ 24 V DC (approx. 84 W total) |
| Peak Input Current | 8 A during gate-pulse events |
| Gate Pulse Output, Turn-On | +20 V DC |
| Gate Pulse Output, Turn-Off / Bias | -15 V DC |
| Gate-Pulse Peak Current | 15 – 25 A (set by external gate resistor) |
| Rise Time (10 %–90 %) | ≤ 200 ns for fast, clean IGCT switching |
| Isolation | Fully isolated outputs from 24 V auxiliary input; 10 kV optical isolation on firing path |
| Protection | Desaturation detection, overload/short-circuit foldback, thermal shutdown |
| Fault Response | 2–3 µs short-circuit detection and protective shutdown |
| Mechanical Size | 210 × 145 × 35 mm |
| Weight | 0.95 kg |
| Mounting | Power-cubicle panel / heatsink mount with fixing screws |
| Protection Rating | IP20 (cabinet installation only) |
| MTBF | 200,000 hours @ 40 °C ambient (MIL-HDBK-217F) |
| HS Code | 8504.90.99 |
| Lifecycle Status | Active spare within ABB ACS6000 / power-electronics service portfolio |
Technical Principles and Innovative Values
Innovation Point 1 — Clean +20 V / -15 V gate-drive rails from a single 24 V DC source. The 3BHB005243R0105 integrates a multi-output isolated DC/DC converter that derives precisely regulated +20 V turn-on and -15 V turn-off bias from the converter’s 24 V DC auxiliary rail. The negative bias is critical in high-dv/dt environments: it holds the IGCT firmly off and prevents spurious turn-on from voltage transients on the collector-emitter path.
Innovation Point 2 — Fiber-optic firing for 10 kV of electrical separation. Firing commands from the drive main control board (typically SDCS-CON-2 or SDCS-CON-4) reach the KUC755AE105 over fiber. This removes any copper path between the low-voltage control world and the multi-kilovolt power stage, eliminating ground loops and preventing high-voltage transients from reaching the control electronics.
Innovation Point 3 — Sub-200 ns rise time and 15–25 A peak gate current. The module generates fast, high-current pulses that turn the IGCT on decisively. A sharp edge minimises switching losses and keeps the device inside its safe operating area—directly extending IGCT life in high-duty-cycle applications such as rolling-mill main drives and mine hoists.
Innovation Point 4 — Desaturation protection with a 2–3 µs response. The 3BHB005243R0105 monitors collector-emitter voltage during conduction and detects short-circuit conditions in microseconds. When a fault appears, it triggers a protective shutdown before the IGCT and surrounding hardware can be damaged—a capability that pays for the spare many times over in a single avoided converter outage.
Innovation Point 5 — Mechanically and electrically backward-compatible GUSP. The KUC755 family supersedes the earlier KUC711AE101 generation. The 3BHB005243R0105 (AE105) is fully compatible with the gate-unit positions in existing ACS6000 power cabinets, so it drops in without changing the rack, backplane or field wiring.
