Description
Application Scenarios
Picture a system integrator building a packaging machine for a European customer. The control cabinet houses three PowerFlex 525 drives, a CompactLogix PLC, and a vision sensor that inspects bottle labels at 120 frames per second. During factory acceptance testing, the machine fails EMC pre-compliance: the vision sensor loses lock and the PLC logs sporadic communication timeouts whenever the drives ramp a conveyor. Rather than redesign the cabinet, add expensive shielding, or reroute every cable, the integrator installs a 25-RF7P5-AL on the input power terminals of each Frame A drive. The integrated LC filter network immediately attenuates the high-frequency conducted noise, and the machine passes certification cleanly — no cabinet redesign, no delays, no rewritten bill of materials .
Now imagine a water treatment plant that has just retrofitted its raw-water pump drives to PowerFlex 523 units for an energy-saving project. The new VFDs run beautifully, but the plant’s flowmeters and pressure transmitters — and with them the chemical dosing logic — begin showing erratic readings whenever a pump starts. The culprit is conducted EMI riding the 24 V DC control circuits and communication lines. Retrofitting the existing drives with the 25-RF7P5-AL suppresses that line-borne interference, restoring accurate telemetry and allowing the plant to return to precise, compliant chemical dosing. In both stories the value of the 25-RF7P5-AL is the same: it turns a hidden, expensive compliance and reliability risk into a predictable, off-the-shelf line item.
Parameter
| Main Parameters | Value / Description |
|---|---|

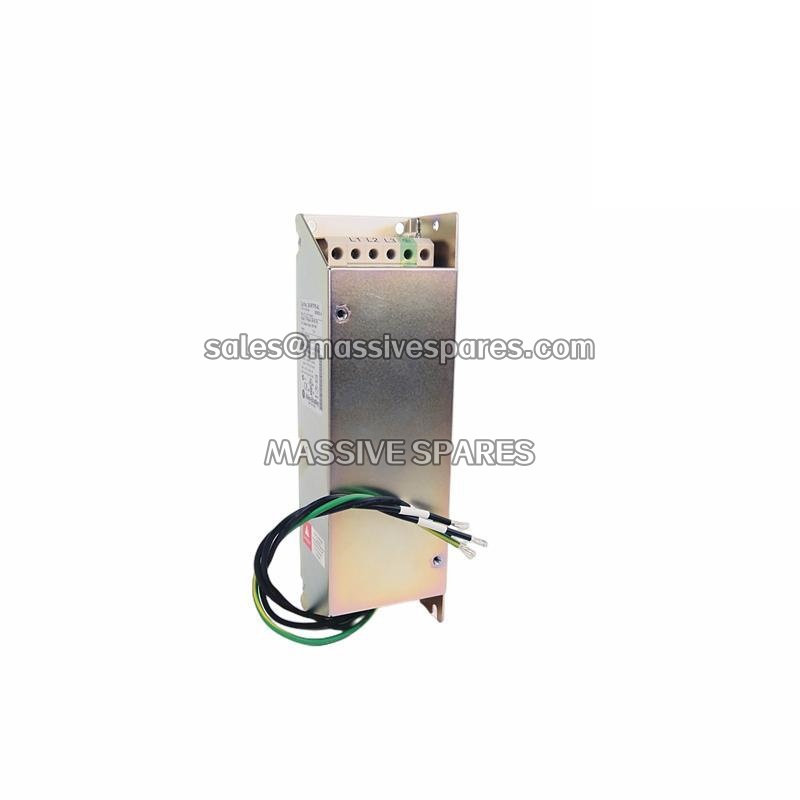

| Product Model | 25-RF7P5-AL — Rockwell’s unique product identifier UPC 884951990258; the exact catalog number to specify for Frame A PowerFlex 520 drives |
| Manufacturer | Allen-Bradley / Rockwell Automation (USA) — global leader in industrial automation, motor control, and drive accessories |
| Product Category | EMC Input Filter Kit (line filter / RFI-EMI noise filter), PowerFlex 520 Series accessory — a passive component, no communication protocol impact |
| Rated Voltage | 480 V AC, 3-phase, 50/60 Hz (operating range 380–480 V AC) — matches standard industrial three-phase supply networks |
| Rated Current | 7.5 A continuous — must be matched to the drive’s input current; do not undersize |
| Supported Power Range | 0.4–2.2 kW (0.5–3 HP) — covers the small-motor segment of the PowerFlex 520 family |
| Compatible Drives | PowerFlex 523, PowerFlex 525, PowerFlex 527 — Frame A only; NOT interchangeable with other frame sizes |
| Filter Class / Attenuation | Class A industrial; designed to help meet CISPR 11 / EN 61800-3 conducted-emission limits, with attenuation targeted at 150 kHz–30 MHz |
| Mounting / Enclosure | Panel mount (vertical), IP20 / UL-NEMA Type Open — must be installed inside a protective control cabinet |
| Kit Contents | Filter module, mounting bracket, and all necessary screws/hardware — a complete, error-reducing “compliance in a box” |
| Physical Dimensions | 271.78 × 152.4 × 78.74 mm (L × W × H); approx. 1.64 kg — compact enough for dense panel layouts |
| Terminal / Wiring | Drive-side pre-wired 3 or 4-core connection; M5 (#10-24) screw terminals, torque 1.56–1.96 N·m (14–17 lb-in); accepts 0.32–8.4 mm² (22–8 AWG) |
| Environmental Adaptability | Operating 0 °C to +50 °C; storage −40 °C to +85 °C — consistent with the drive family’s ambient range |
| Certifications | CE, cULus, TÜV, C-Tick, ATEX, GOST-R, KCC, RCM, EAC, RoHS, Semi F47 — supports global market access |
| Lifecycle Status | Active (as of 2026-07-16); 1-year standard warranty; estimated 5-day lead time; Country of Origin China |
