Honeywell 51401497-100 FW25-92 Dual-Node PSU for Refinery & Power DCS Cabinets

Brand Honeywell

Model Honeywell 51401497-100 FW25-92

Product Overview

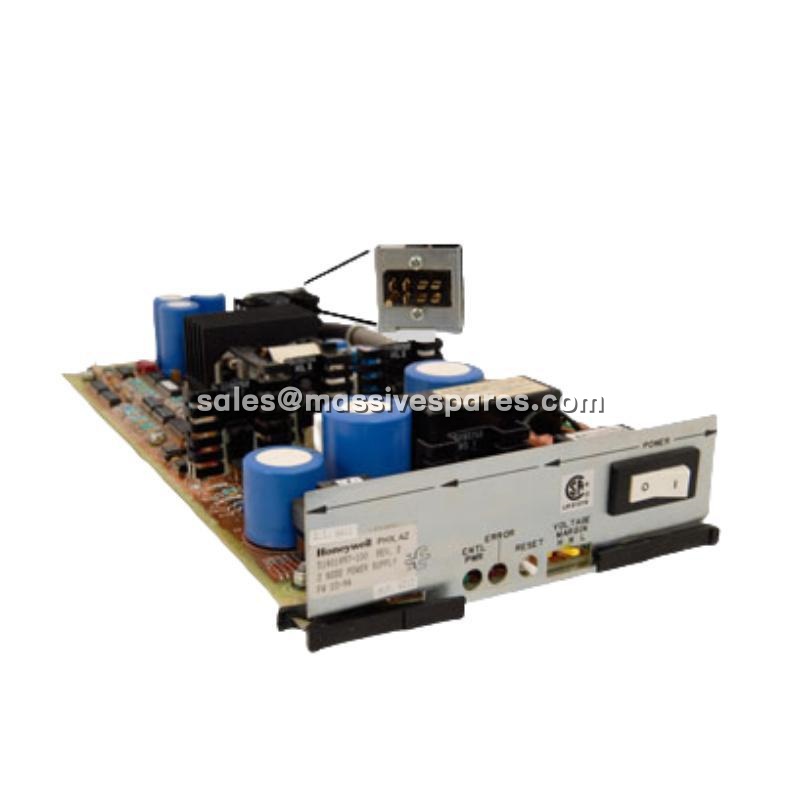

The Honeywell 51401497-100 (firmware/hardware revision FW25-92) is a Dual-Node Power Supply Module purpose-built for the Local Control Network (LCN) rack of Honeywell’s TDC 3000 distributed control system. In a TDC 3000 cabinet, the LCN rack houses the processors, communication cards, and I/O modules that form the brain of the DCS; the Honeywell 51401497-100 is the unit responsible for converting incoming AC mains into the multiple clean, regulated DC voltages those boards require. It is, quite literally, the foundation that keeps the entire node operational.

What distinguishes the Honeywell 51401497-100 from a conventional single-output PSU is its dual-node architecture. A single module provides independent, isolated DC power to two nodes within the same LCN chassis—commonly supporting a pair of Universal Stations or a processor node plus its redundant companion. This means that a failure in one power channel does not automatically take down both nodes, directly supporting the high-availability, fault-tolerant design philosophy of the TDC 3000 platform. The module accepts a wide-range 100–240 VAC input, making it compatible with power standards across North America, Europe, and Asia without manual voltage selection or jumper changes.

Internally, the Honeywell 51401497-100 generates the +5 VDC and ±12 VDC rails required by the rack backplane and its resident control boards, with low output ripple to avoid injecting noise into sensitive analog and communication circuits. Comprehensive protection—overvoltage, overcurrent, short-circuit, and thermal shutdown—safeguards the expensive electronics downstream. A front-panel RESET control and H/N/L voltage-trim switches allow field adjustment, while PWR, CNTL, and ERROR LEDs give operators and technicians at-a-glance status visibility. For plants maintaining legacy TDC 3000 infrastructure, the 51401497-100 represents a co

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	51401497-100 (FW25-92)
Manufacturer	Honeywell Process Solutions
Product Type	Dual-Node Power Supply Module
Compatible Platform	Honeywell TDC 3000 (LCN Rack)
Input Voltage	100–240 VAC, 50/60 Hz (wide-range)
Output Voltages	+5 VDC, +12 VDC, -12 VDC (regulated)
Output Ripple & Noise	≤ 50 mV (typical)
Node Support	2 independent nodes (dual-node)
Front-Panel Controls	RESET button; H / N / L voltage trim switches
Status Indicators	PWR (power OK), CNTL (control), ERROR (fault)
Protection	Overvoltage, overcurrent, short-circuit, thermal shutdown
Operating Temperature	0°C to +60°C
Dimensions (W×H×D)	310 × 128 × 42 mm (approx. 5.5 × 38.5 × 18 cm)
Weight	Approx. 1.98 kg
Enclosure Rating	IP20 (indoor cabinet installation)

Main Features and Advantages

Dual-node independent power: The signature capability of the Honeywell 51401497-100 is its ability to supply two physically independent nodes from one module. This isolates a fault in one node’s power domain from the other, directly increasing DCS availability and reducing the blast radius of a power-side failure.

Wide-range AC input: Accepting 100–240 VAC without manual selection, the module adapts to virtually any global mains standard. This is a significant logistics and deployment advantage for multinational plants and eliminates the risk of incorrect jumper setting during installation.

Clean, multi-rail DC output: The +5 VDC and ±12 VDC regulated outputs deliver the exact voltage rails required by the LCN backplane, processor boards, communication cards, and I/O modules. Ripple and noise are held to 50 mV or below, preventing power-derived interference from contaminating sensitive control and analog signals.

Comprehensive electrical protection: Integrated overvoltage, overcurrent, short-circuit, and thermal-shutdown circuits actively protect downstream boards. If a fault condition arises, the module limits or removes power rather than allowing a damaging condition to propagate through the rack.

Field-adjustable controls: A RESET button and H / N / L voltage-trim switches on the front panel let technicians fine-tune output levels and reset fault conditions on-site without special tools or software. A built-in jumper (J1) also selects internal (INT) or external (EXT) clock—the latter enabling Sequence of Events (SOE) time synchronization with a master node.

Clear front-panel diagnostics: PWR, CNTL, and ERROR LEDs provide immediate visual indication of operating status and hardware faults, enabling rapid identification of a failing unit during troubleshooting and minimizing mean time to repair.

Rugged industrial construction: Housed in a standard single-slot LCN rack form factor with an IP20-rated enclosure, the Honeywell 51401497-100 is built for continuous-duty cabinet operation. Its conformal-coated PCB resists dust, moisture, and mild corrosive atmospheres commonly found in process plants.

Hot-swap and redundancy support: The module supports hot-swappable replacement in redundant node configurations, allowing a failed unit to be exchanged without a full system power-down. When deployed in parallel with a companion supply, it delivers the uninterrupted power critical process units demand.
