Honeywell 51402625-175 MC-PDIS12 – Reliable SOE Input Processing for Critical Applications

Brand Honeywell

Model Honeywell 51402625-175 MC-PDIS12

Product Overview

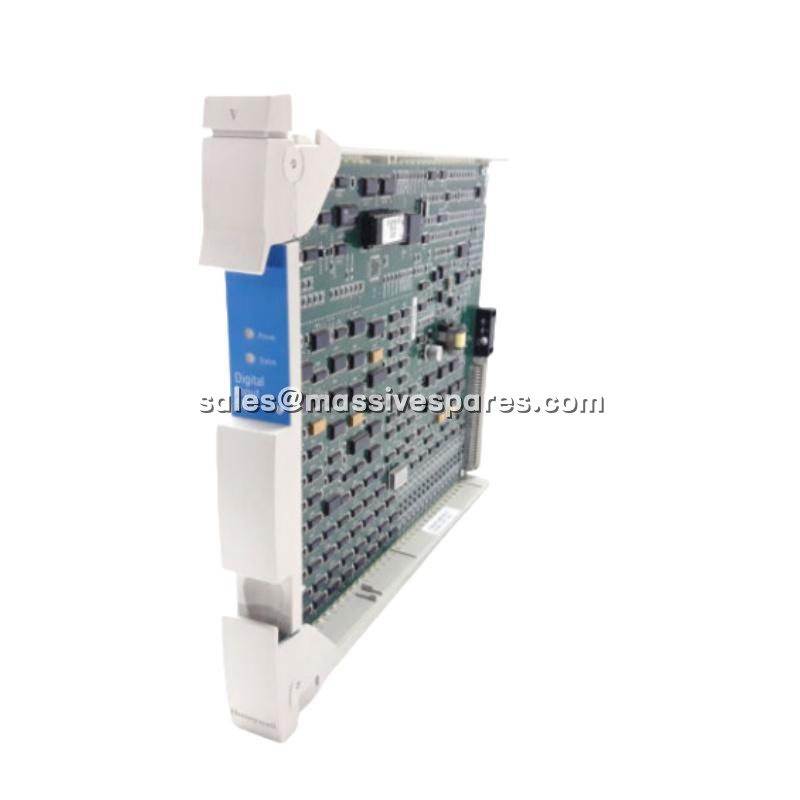

The Honeywell 51402625-175 is a specialized Digital Input Sequence of Events (SOE) Processor Module engineered for the Honeywell PKS and TDC 3000 Distributed Control Systems. Identified by its functional designation MC-PDIS12, the Honeywell 51402625-175 serves as a high-density digital input processor designed to capture, time-stamp, and sequence discrete events across 32 input channels. Unlike general-purpose digital input modules, the Honeywell 51402625-175 is purpose-built for Sequence of Events applications where precise event ordering and timing accuracy are essential for post-event analysis, root cause investigation, and regulatory compliance in critical process industries.

The Honeywell 51402625-175 incorporates channel-to-channel galvanic isolation across its VDC logic processing paths, effectively blocking common-mode voltage fluctuations, ground loops, and electrical surges from propagating through the internal backplane data lanes. This isolation architecture protects the central DCS processors from field-side disturbances while maintaining signal integrity across all 32 input channels. The board features integrated digital input filtering that suppresses mechanical contact bounce natively at the module level, ensuring that state transitions are cleanly digitized and time-stamped before transmission across the primary network bus .

A distinguishing characteristic of the Honeywell 51402625-175 is its conformal coating, which completely covers the assembly with a thin protective layer resistant to humidity and most chemical gases. This coating makes the Honeywell 51402625-175 particularly suitable for installations in corrosive or humid environments where standard electronic assemblies would experience accelerated degradation. As a CE Compliant variant, the Honeywell 51402625-175 meets European regulatory requirements for electromagnetic compatibility and safety, enabling deployment across global operations without additional certification concerns .

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	51402625-175
Manufacturer	Honeywell
Product Type	MC-PDIS12 Digital Input Sequence of Events (SOE) Processor
Alternate Designations	MC-PDIS12, 51402625175
System Platform	Honeywell PKS / TDC 3000
Input Channels	32 digital inputs
Input Type	Digital Input Sequence of Events (DI SOE)
Special Feature	Conformally Coated Assembly
Isolation	Channel-to-channel galvanic isolation
Input Filtering	Integrated contact bounce suppression
Diagnostics	Field power failure detection, local fault LED
Mounting	Backplane-mounted IOP module
Weight	Approximately 0.45 kg
Country of Origin	USA
Certification	CE Compliant
Non-CE Equivalent	N/A (CE version designated)

Main Features and Advantages

Dedicated Sequence of Events Processing: The Honeywell 51402625-175 functions not as a general-purpose digital input module but as a specialized SOE processor that captures and time-stamps discrete events with the precision required for chronological event reconstruction. This capability is essential in industries where understanding the exact sequence of trips, alarms, and process deviations determines root cause and informs corrective action.

Channel-to-Channel Isolation Architecture: The Honeywell 51402625-175 incorporates independent galvanic isolation barriers across all 32 input channels, blocking common-mode voltage fluctuations, ground loops, and electrical surges from traveling along internal backplane data lanes. This layout protects the central DCS processors from field-side disturbances while maintaining signal integrity across the entire input set .

Conformal Coating for Environmental Protection: The Honeywell 51402625-175 is completely covered with a thin protective plastic layer that resists the corrosive effects of humidity and most chemical gases. This coating significantly extends module service life in environments where airborne contaminants or elevated moisture levels would otherwise accelerate electronic degradation .

Native Contact Bounce Suppression: The Honeywell 51402625-175 handles multi-channel contact sensing with high-speed sampling filters that suppress raw mechanical contact bounce at the module level. This ensures that state transitions are cleanly processed, digitized, and time-stamped before transferring data frames across the primary network bus, eliminating false event counts and reducing network traffic .

Comprehensive Diagnostic Capability: The Honeywell 51402625-175 includes onboard diagnostic logic that detects field-side interrogation voltage drops below nominal operating limits. When such a condition is detected, the card flags a field power failure, freezes active memory buffers, illuminates a local fault LED on the faceplate, and transmits an alert flag through the backplane to the operator console .

CE Compliant Design: The Honeywell 51402625-175 is the CE Compliant variant of the MC-PDIS12 digital input processor, meeting European regulatory requirements for electromagnetic compatibility and safety. This certification enables deployment across global operations without additional compliance modifications .
